——Accurate cleaning, stable and reliable ELISA experimental partner

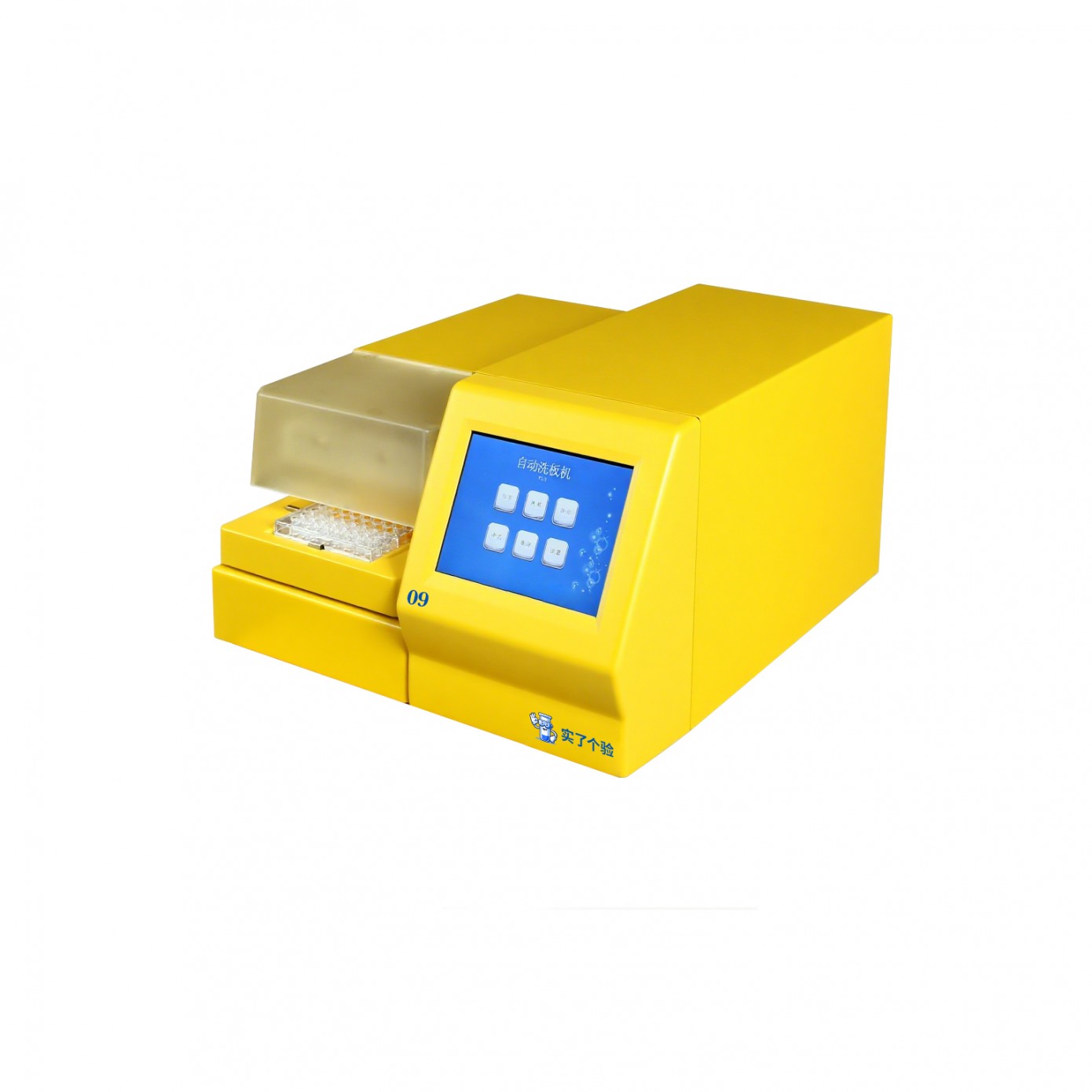

The 09 type automatic washing machine is an intelligent enzyme-linked immunosorbent assay (ELISA) plate cleaning equipment independently developed by Changsha Shi Ge Yan Biotechnology Co., Ltd.It is mainly used in the cleaning process of ELISA (enzyme-linked immunosorbent assay) and other immunological detection processes, to remove unbound enzyme markers, substrates or impurities in the plate well, thereby reducing the detection background and improving the sensitivity and accuracy of the experiment.
Compared with traditional manual cleaning methods, the 09 automatic washing machine has significant advantages in efficiency, stability, residual liquid control, and ease of operation. It adopts a non positive and negative pressure cleaning design, avoiding the problem of scratches on the bottom of the cup, and can achieve an average residual liquid volume of ≤ 1 μ L/hole, providing assurance for high-quality experimental results.
The manufacturer promises a three-year warranty for the entire machine, with only replacement and no repair, ensuring that users have no worries during the experimental process.
Precise cleaning: By using multiple levels of pressure, adjustable injection time, and cross row cleaning function, the uniformity of cleaning for different plate types is ensured.
Low residual liquid volume: The residual liquid is controlled at ≤ 1 μ L/well, significantly reducing background interference.
Intelligent management: Support user self programming, store 200 sets of cleaning solutions, quickly call them, and improve experimental efficiency.
Wide compatibility: Supports various board types such as flat bottom, U-shaped, V-shaped, and C-shaped, meeting the needs of multiple fields such as clinical testing, scientific research, and food testing.
The basic principle of a washing machine is to complete cleaning through the process of liquid injection → soaking → liquid suction → vibration mixing.
The injection system injects cleaning solution into the hole;
The soaking function ensures sufficient separation of the binding agent;
The suction needle sucks out the liquid;
The vibration plate function makes cleaning more uniform.
This cycle can be repeated multiple times to achieve the goal of removing unbound substances and impurities.
Equipped with a 5.6-inch color LCD touch screen, the interface is simple and intuitive;
Users can customize programming and store up to 200 sets of cleaning programs;
Built in 20 different specifications of boards for quick switching of experiments.
Central cleaning and two-point cleaning: meet the requirements of different experiments for cleaning strength and uniformity;
Strip, whole board, fast and standard modes: flexible response to different experimental scenarios;
Scratch resistant design: to prevent cleaning needles from damaging the bottom of the board.
The average residual liquid volume is ≤ 1 μ L/well;
Suitable for 8-pin/12 pin dual row needles, supports disassembly and cleaning, and is easy to maintain;
Compatible with multiple board types, including flat bottomed, U/V/C type 96 hole boards, and strip boards.
Cleaning frequency: 0-99 times;
Injection pressure: 1-5 levels;
Injection/suction time: 0-9 seconds;
Soaking time: 0-24 hours, accurate to seconds;
Vibration board function: 0-24 hours, three levels of intensity.
Alarm when the waste liquid bottle is full to prevent overflow;
Supports 24/7 operation;
Energy saving management in non working conditions to reduce energy consumption.
Washing hair: 8-needle/12 needle dual row needles, detachable for cleaning
Applicable board types: flat bottomed, U-shaped, V-shaped, C-shaped 96 hole standard board and strip board
Washing solution channel: comes standard with 1 channel and can be expanded to 4 channels
Residual liquid volume: ≤ 1 μ L/well
Cleaning frequency: 0-99 times
Cleaning rows: 1-12 rows, supporting cross row cleaning
Injection pressure: adjustable levels 1-5
Injection/suction time: 0-9 seconds
Soaking time: 0-24 hours
Vibration board function: 0-24 hours, three levels to choose from
Display and operation: 5.6-inch color LCD touch screen
Program storage: 200 sets, 20 board types
Liquid level warning: full tank alarm for waste liquid bottle
Power input: AC100-240V 50-60Hz
Bottle washing configuration: Standard configuration includes 3 2L reagent bottles
Weight: Approximately 9kg
Dimensions: Approximately 380 × 330 × 222mm
Routine ELISA plate cleaning in ELISA detection;
High throughput cleaning requirements for immunological testing of infectious diseases.
Sample cleaning for immunology and molecular biology experiments;
Long term immersion, flexible liquid injection, suitable for complex experimental systems.
Food safety ELISA testing;
Pesticide residue, toxin analysis, and water quality monitoring.
ELISA teaching in university experimental courses;
Students can quickly get started and operate intuitively.
Power on inspection
Confirm the status of cleaning bottles and waste liquid bottles;
Check if the cleaning head is clogged.
Parameter Settings
Select the cleaning mode according to the experimental needs;
Adjust the injection pressure, suction time, and soaking duration.
Operation precautions
Suggest conducting an empty board test first to confirm the parameters;
For special samples, a flexible cleaning mode is used.
Result verification
Observe whether the residual liquid volume meets the standard after cleaning;
Check if the bottom of the board is intact and free of scratches.
routine maintenance
Clean the needle after each use;
Check if the pipeline is unobstructed;
Regularly empty the waste liquid bottle.
periodic maintenance
Disassemble and thoroughly clean the cleaning head once a week;
Check the pressure system and liquid pump every six months.
Precautions
Avoid using corrosive cleaning solutions;
Keep the equipment ventilated during operation.
When purchasing a washing machine, it is important to pay special attention to:
Residual liquid volume: Can it be controlled within ≤ 1 μ L/well;
Compatibility: Does it support multiple board types;
Programmable function: whether it can store and call solutions;
After sales guarantee: whether it has long-term warranty and fast service;
Maintenance convenience: Whether the cleaning hair is detachable and easy to clean on a daily basis.
The 09 type automatic washing machine has advantages in these dimensions and outstanding cost-effectiveness.
With the rapid development of immunological testing and molecular diagnosis, washing machines will evolve in the following directions in the future:
Lower residual liquid volume: improve detection sensitivity;
Stronger compatibility: supports different specifications and high-density board types;
More intelligent: seamless integration with Laboratory Information Management System (LIMS);
More energy-efficient and environmentally friendly: reduce fluid and energy consumption;
More user-friendly: AI assisted settings and fully automated maintenance.
The 09 type automatic washing machine is an efficient, precise, and intelligent laboratory cleaning equipment.It not only solves the problems of low manual cleaning efficiency, large residual liquid volume, and unstable results in ELISA experiments, but also provides a complete solution in terms of user experience, parameter flexibility, and after-sales support.
With a non positive and negative pressure cleaning design, a residual liquid volume of ≤ 1 μ L, 200 sets of programmable storage, and a commitment to only replace and not repair for three years, the 09 automatic washing machine has become an ideal choice for medical testing, scientific research experiments, food safety, and university teaching.
It is not only an experimental equipment, but also a core partner to ensure the reliability of experimental results and improve experimental efficiency.
