Changsha Shi Ge Yan Biotechnology Co., Ltd. is located in Wangcheng Economic and Technological Development Zone, Changsha City, Hunan Province. It is a well-known laboratory instrument research and manufacturing enterprise in China. The company has a complete R&D, production, and quality management system, and its products have passed certifications such as ISO9001, ISO13485, and CE. With the concept of "quality as the root, innovation as the foundation", the company has long been committed to providing reliable and intelligent experimental equipment for clinical testing, research institutes, food and environmental testing, and university teaching platforms.

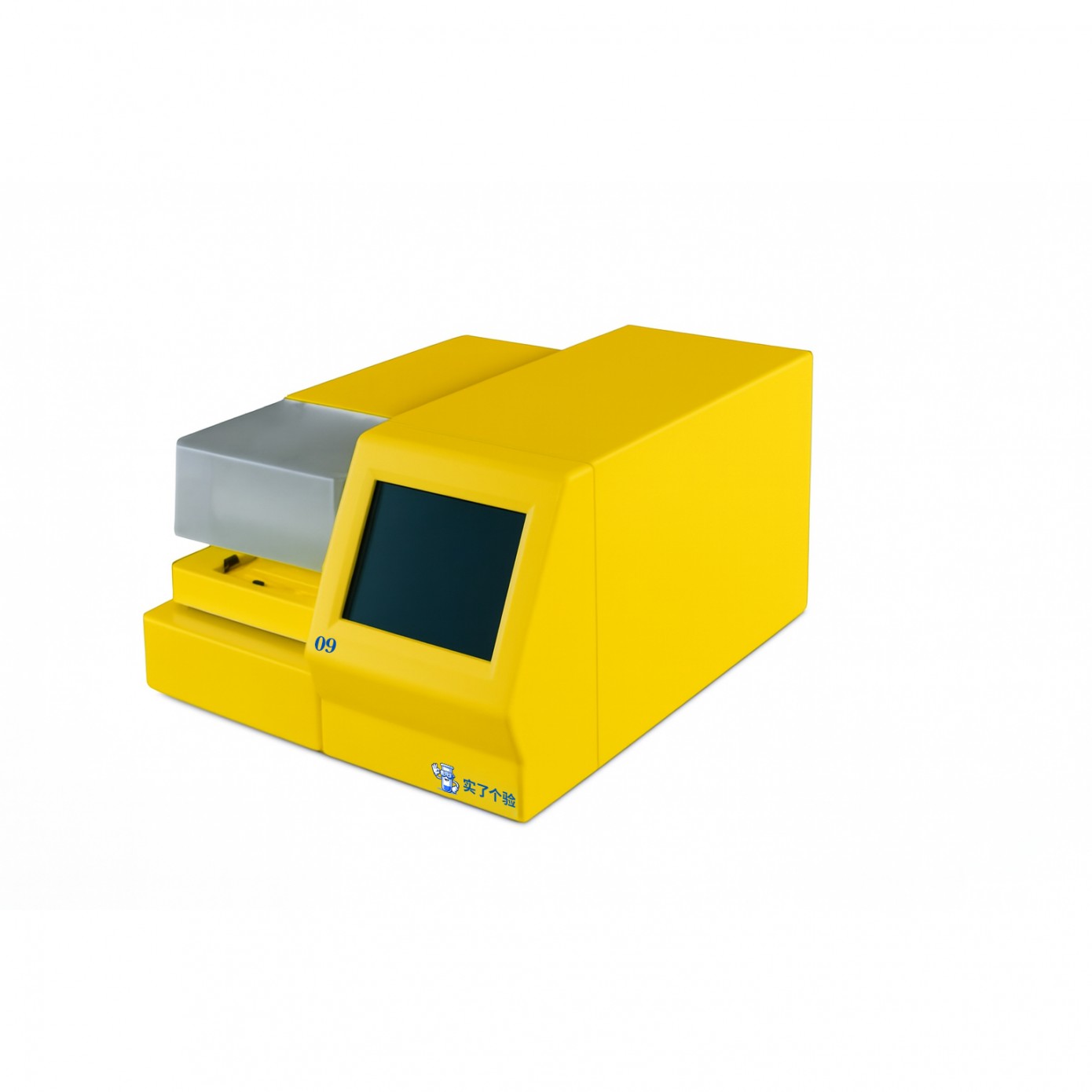

The 09 automatic washing machine is a new generation of intelligent ELISA cleaning equipment independently developed by the company, designed to improve the efficiency and accuracy of immunological detection. This product adopts non positive and negative pressure cleaning technology, is compatible with multiple plate types, and is designed with low residual liquid to effectively reduce detection background and improve the stability of experimental results.
The device is equipped with a 5.6-inch color LCD touch screen, with an intuitive interface that supports user self programming and 200 sets of cleaning program storage, which can meet the needs of different experimental schemes. The whole machine runs stably and has advantages such as efficient cleaning, low residue, scratch prevention, and intelligent management.
Intelligent interactive system
5.6-inch color LCD touch screen operation, clear and intuitive;
Support 200 sets of cleaning program storage, built-in 20 board types, flexible adaptation to different needs;
Users can self program and quickly call up experimental plans.
Efficient cleaning performance
Non positive and negative pressure cleaning design improves cleaning uniformity and reliability;
Support center cleaning and two-point cleaning modes, suitable for strip and whole board cleaning;
Configure anti scratch function at the bottom of the cup to extend the lifespan of the enzyme-linked immunosorbent assay (ELISA) plate.
Low residual liquid performance
The cleaning head is a dual row of 8-pin/12 pin and supports disassembly and cleaning;
Compatible with flat bottomed, U-shaped, V-shaped, C-shaped 96 hole standard plates and strip plates;
The average residual liquid volume is ≤ 1 μ L/well, significantly reducing background interference.
Multi parameter adjustable
The cleaning frequency can be set from 0 to 99 times;
Rows 1-12 can be selected, supporting cross row cleaning;
The injection pressure can be adjusted in levels 1-5;
The injection/suction time is 0-9 seconds, soaking time is 0-24 hours, and the vibration board function can be set from 0-24 hours. There are three options available.
Safety and energy-saving design
Alarm when the waste liquid bottle is full, ensuring the safety of the experiment;
Support continuous operation 24/7;
Equipped with energy-saving management functions to reduce energy consumption.
Washing hair: 8-needle/12 needle dual row needles, detachable for cleaning
Applicable board types: flat bottomed, U-shaped, V-shaped, C-shaped 96 hole standard board and strip board
Washing solution channel: comes standard with 1 channel and can be expanded to 4 channels
Residual liquid volume: average ≤ 1 μ L per well
Cleaning frequency: 0-99 times
Cleaning rows: 1-12 rows, supporting cross row cleaning
Injection pressure: adjustable levels 1-5
Injection/suction time: 0-9 seconds
Soaking time: 0-24 hours (hours, minutes, and seconds can be set)
Vibration board function: 0-24 hours, three levels of intensity
Cleaning modes: center cleaning, two-point cleaning, scratch resistant design, supporting strip/plate/quick/standard cleaning
Program storage: 200 sets, built-in 20 board types
Liquid level warning: full tank alarm for waste liquid bottle
Power input: AC100-240V, 50-60Hz
Bottle washing configuration: Standard configuration includes 3 2L reagent bottles
Dimensions: Approximately 380 × 330 × 222 mm
Net weight: approximately 9kg
Clinical medical testing: Routine cleaning in ELISA and various immunological tests.
Research experiment: High throughput plate cleaning in immunology and molecular biology research.
Food and environmental testing: cleaning of enzyme-linked immunosorbent assay plates for pesticide residues, toxins, food safety, and water quality monitoring experiments.
Teaching Platform: ELISA Operation Training and Demonstration in University Experimental Teaching.
Changsha Shi Ge Yan Biotechnology Co., Ltd. provides comprehensive after-sales support for the 09 automatic washing machine:
The whole machine has a three-year warranty;
Only replace without repairing, minimizing experimental interruptions to the greatest extent possible;
Remote and on-site technical support to ensure users quickly grasp the use;
Long term supply of original factory accessories and consumables to ensure the continuous use of equipment.
The 09 type automatic washing machine has the core advantages of efficient cleaning, low residual liquid volume, intelligent programming, and compatibility with multiple plate types, making it a reliable equipment for ELISA experiments and immunological detection.
With the research and development capabilities of Changsha Shi Ge Yan Biotechnology Co., Ltd. and the after-sales commitment of "three-year warranty, only replacement, not repair", this equipment not only improves experimental efficiency, but also provides users with long-term stable guarantee.
The 09 automatic washing machine is an ideal choice for clinical testing, scientific research experiments, food safety, and university teaching platforms.
