——Changsha Shi Ge Yan Biotechnology Co., Ltd. production

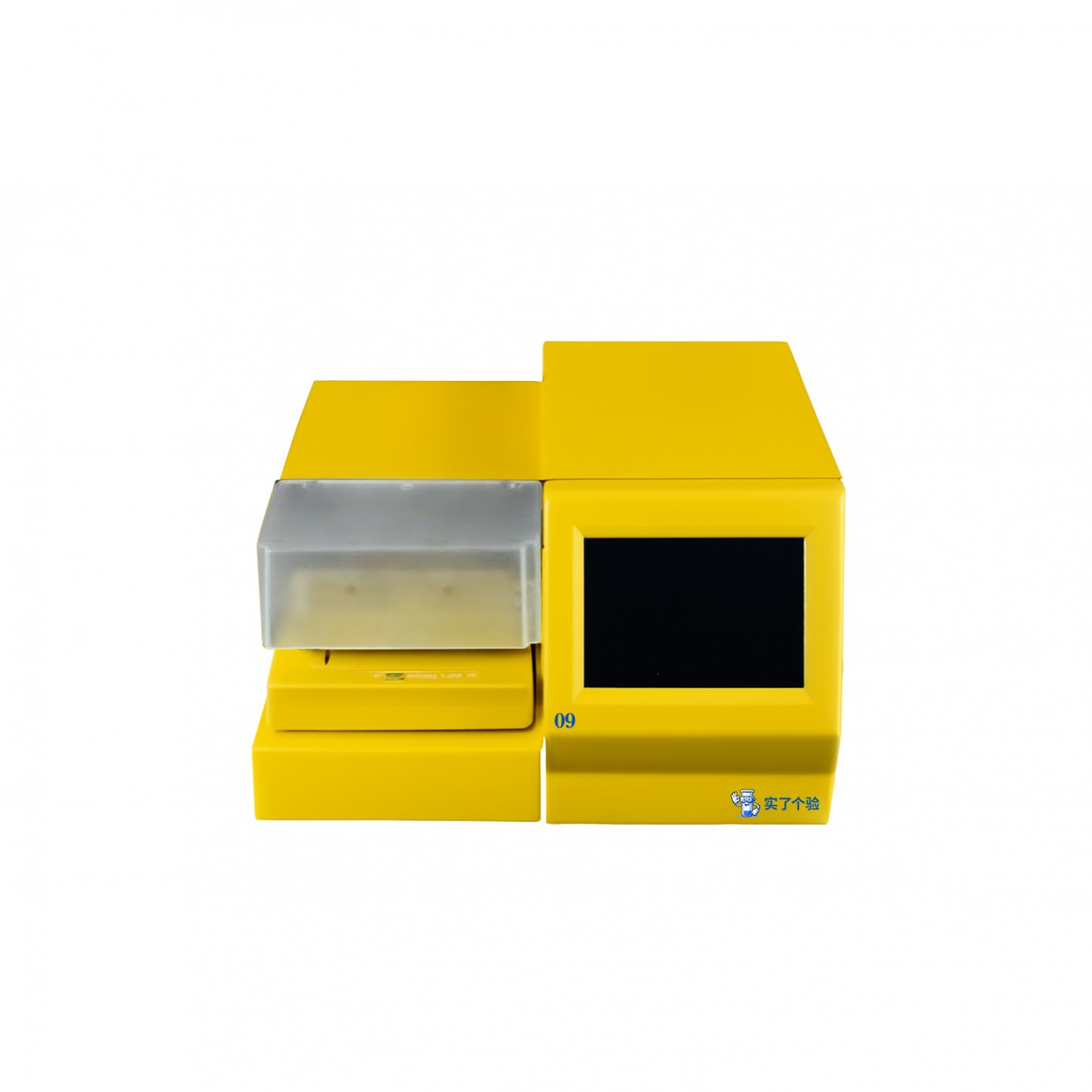

The 09 type automatic washing machine is a high-performance and multifunctional laboratory cleaning equipment launched by Changsha Shi Ge Yan Biotechnology Co., Ltd. This product is mainly used for the cleaning of enzyme-linked immunosorbent assay (ELISA) plates in ELISA experiments and other immunological tests, and has the characteristics of precision, speed, and low residual liquid volume.
The equipment adopts a non positive and negative pressure cleaning design, combined with multiple cleaning modes, which can effectively avoid scratches on the bottom of the cup, extend the service life of the enzyme-linked immunosorbent assay (ELISA) plate, and ensure that the residual liquid volume after cleaning is extremely low (average ≤ 1 μ L per well), meeting the high precision requirements of scientific research and clinical laboratories.
Equipped with a 5.6-inch color LCD touch screen, the operation interface is intuitive, supporting user programming and 200 sets of program storage, compatible with multiple board types, which can greatly improve the work efficiency of the laboratory.
The manufacturer promises a three-year warranty for the entire machine, with only replacement and no repair, to ensure the continuity and stability of user experiments to the greatest extent possible.
Intelligent Interaction Design
Equipped with a 5.6-inch color LCD screen, the touch operation is intuitive and convenient;
Support user-defined programming, up to 200 sets of cleaning programs can be stored, and the laboratory can flexibly call them according to different project requirements;
Built in 20 different specifications of board storage for quick adaptation.
Flexible cleaning mode
Adopting non positive negative pressure technology design to improve cleaning uniformity and reliability;
Support center cleaning, two-point cleaning, and can choose from four cleaning modes: standard speed, fast bar and plate cleaning;
Equipped with anti scratch function at the bottom of the cup, ensuring the durability of the board.
Efficient and low residual liquid performance
The cleaning head supports 8-pin/12 pin dual row needles, with detachable cleaning at both ends for easy maintenance;
Flat bottomed, U-shaped, V-shaped, and C-shaped 96 well standard enzyme-linked immunosorbent assay (ELISA) plates and strip plates are applicable;
The average residual liquid volume is ≤ 1 μ L/well, significantly reducing background interference and improving detection accuracy.
Washing hair: 8-needle/12 needle dual row needles, detachable for cleaning
Applicable board types: flat bottomed, U-shaped, V-shaped, C-shaped 96 hole standard board and strip board
Washing solution channel: comes standard with 1 channel and can be expanded to 4 channels
Residual liquid volume: average ≤ 1 μ L per well
Cleaning frequency: 0-99 times
Cleaning rows: 1-12 rows, supporting cross row cleaning
Injection pressure: adjustable levels 1-5
Injection/suction time: 0-9 seconds can be set
Soaking time: 0-24 hours, adjustable in hours, minutes, and seconds
Vibration board function: 0-24 hours, strength level 3 optional
Cleaning modes: center cleaning, two-point cleaning, scratch resistant design, supporting plate/strip/fast/standard modes
Program storage: 200 sets of programs, 20 board types
Liquid level warning: full tank alarm for waste liquid bottle
Display operation: 5.6-inch color LCD touch screen
Power input: AC100-240V 50-60Hz wide voltage
Bottle washing configuration: Standard configuration includes 3 2L reagent bottles
Net weight: approximately 9kg
Dimensions: Approximately 380 × 330 × 222mm
Clinical testing
Routine ELISA plate cleaning in ELISA experiments;
High throughput cleaning requirements in immunological testing of infectious diseases.
Scientific research experiment
Sample plate cleaning in immunology and molecular biology experiments;
Long term immersion and flexible liquid injection function are suitable for complex experimental systems.
Food and Environmental Testing
Food safety testing, pesticide residue and toxin ELISA analysis;
Cleaning of porous plates in environmental water quality monitoring experiments.
Teaching and Training
ELISA teaching and practical training in university experimental courses;
A stable operating interface is beneficial for students to quickly master the usage methods.
Power on inspection
Confirm the status of waste liquid bottles and cleaning bottles;
Check if the hair is clean and prevent needle blockage.
Precautions during operation
Set appropriate injection pressure to avoid impact on the plate holes;
Flexible cleaning can be chosen for mild samples.
Maintenance and Care
Regularly disassemble and wash hair to maintain smooth flow;
Regularly replace and clean waste liquid bottles to avoid odors and blockages;
Regularly inspect the channel and keep the pipeline clean.
Changsha Shi Ge Yan Biotechnology Co., Ltd. provides:
Three year complete machine warranty;
Only replace without repairing, ensuring uninterrupted experimentation;
Remote and on-site support to quickly resolve usage issues;
Long term accessory supply ensures sustainable use of equipment.
The 09 type automatic washing machine has become an indispensable core equipment in ELISA experiments and immunological testing due to its non positive and negative pressure cleaning design, low residual liquid volume, multi-mode selection, and user self programming advantages.
It not only meets the laboratory's needs for efficient cleaning and low residue, but also provides users with long-term stable protection through a three-year warranty and a commitment to only replace and not repair.
For clinical laboratories, research institutions, food and environmental testing centers, and university teaching platforms, the 09 model is an ideal choice that combines efficiency, stability, and reliability.
