09 type automatic washing machine selection and usage guide

1、 Why do we need a high-performance washing machine?

In ELISA experiment and immunology detection, plate washing is often regarded as a "supporting role", but it directly affects the accuracy and repeatability of the results. Traditional manual cleaning is not only time-consuming, but also prone to cross contamination and excessive residual liquid, resulting in increased background values and distorted results.

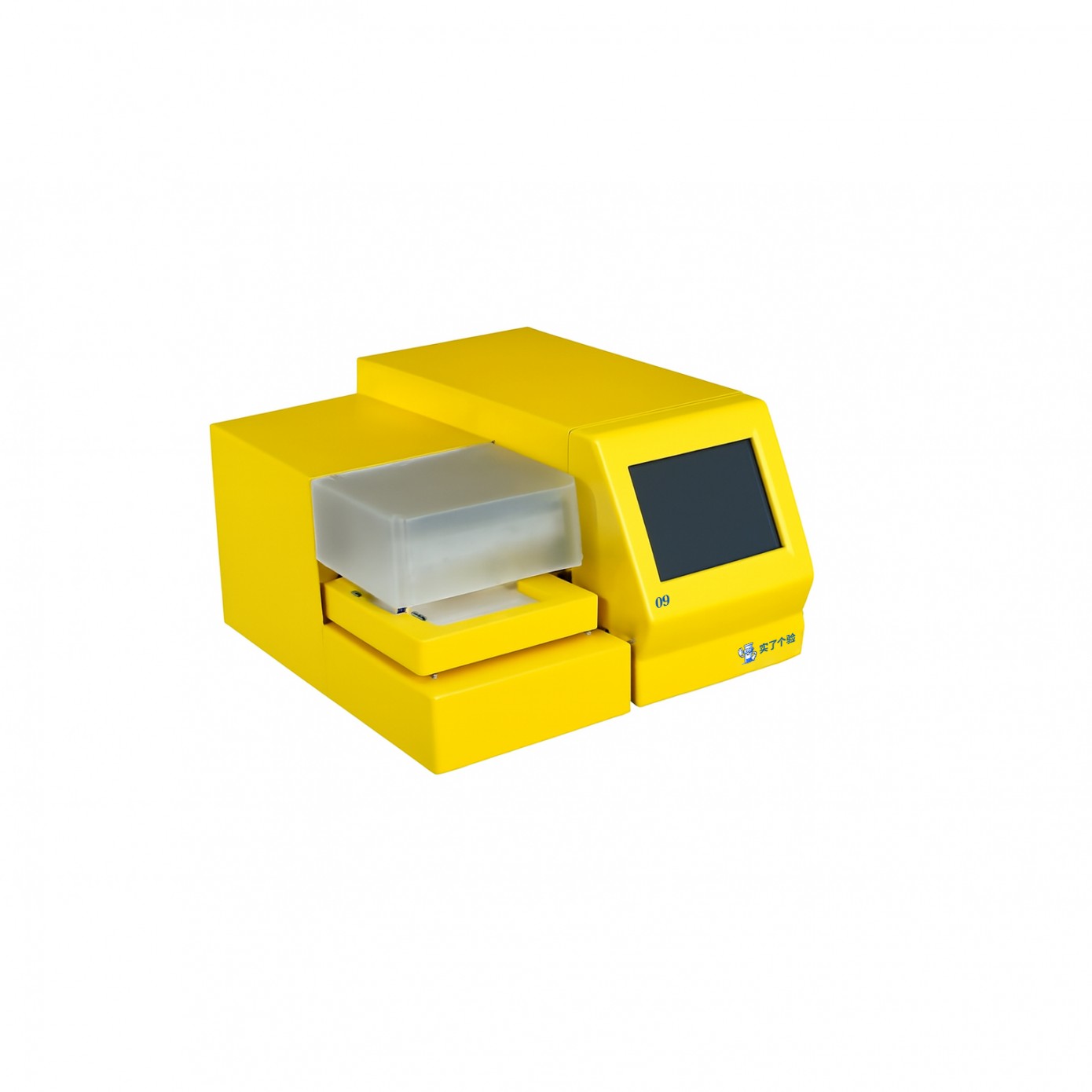

Therefore, more and more laboratories are choosing automatic washing machines to replace manual cleaning.Among numerous devices, Changsha Shi Ge Yan Biotechnology Co., Ltd. has launched the 09 automatic washing machine, which has become the high-frequency choice for ELISA laboratories due to its intelligent design, low residual liquid performance, and flexible cleaning mode.

2、 Reason for purchase: Six advantages of the 09 automatic washing machine

1. Intelligent operation

Equipped with a 5.6-inch color LCD touch screen, the operation interface is clear and intuitive. Users can self program and store up to 200 cleaning solutions, with a built-in library of 20 board types to meet different experimental needs. Especially friendly to shared laboratories among multiple research groups.

2. Efficient cleaning and low residual liquid

Adopting a non positive and negative pressure cleaning design to avoid scratches on the bottom of the board caused by traditional methods.Support multiple modes such as center cleaning and two-point cleaning, with an average residual liquid volume of ≤ 1 μ L/well, effectively reducing the detection background value.

3. Flexible compatibility

Suitable for flat bottomed, U-shaped, V-shaped, C-shaped 96 hole standard plates and strip plates. The cleaning head is an 8-pin/12 pin dual row needle, which can be disassembled for cleaning and is easy to maintain.

4. Rich adjustable parameters

Cleaning frequency: 0-99 times

Row selection: 1-12 rows, supports cross row cleaning

Injection pressure: 1-5 levels

Injection/suction time: 0-9 seconds

Soaking time: up to 24 hours, accurate to seconds

Vibration board function: 0-24 hours, three levels of intensity

These parameters allow users to flexibly set according to different experimental systems, truly achieving "on-demand customization".

5. Continuous operation and energy-saving design

Supports continuous power on for 7 × 24 hours and has energy-saving management function during non working hours. The waste liquid bottle is equipped with a liquid level warning alarm, which ensures better experimental safety.

6. After-sales Commitment

The manufacturer provides a three-year warranty, with only replacement and no repair, to reduce experimental risks caused by equipment downtime.

3、 Usage guide

1. Power on and preparation

Confirm the status of the washing solution bottle and waste liquid bottle to avoid overflow of waste liquid.

Check if the cleaning hair is clean and if the needle holes are unobstructed.

After booting up, choose the appropriate preset board type or custom scheme.

2. Cleaning mode selection

Standard mode: suitable for routine ELISA plate cleaning;

Quick mode: suitable for time sensitive or high-throughput cleaning;

Strip mode: suitable for strip boards;

Flexible cleaning: Avoiding damage to fragile samples through low injection pressure.

3. parameter optimization

Injection pressure: It is recommended to start from the mid-range and adjust according to the plate type and experimental requirements;

Injection/suction time: For experiments with high liquid viscosity, it can be appropriately extended;

Soaking function: used for complex or difficult to clean systems to enhance cleaning effectiveness;

Vibration board function: helps to evenly distribute samples and improve cleaning consistency.

4. Common Problems and Solutions

Excessive residual liquid: Check if the suction time and pressure are reasonable;

Pinhole blockage: Regularly disassemble and clean the hair to keep it unobstructed;

Alarm prompt: If the liquid level of the waste liquid bottle is too high or the pipeline is not smooth, it should be dealt with in a timely manner.

4、 Maintenance Strategy

routine maintenance

Clean the needle after use to avoid salt deposition.

Check if the pipeline is unobstructed.

Keep the device casing and touch screen clean.

Weekly maintenance

Thoroughly disassemble and wash the cleaning hair.

Check the waste liquid bottle and clean and disinfect it.

Long term maintenance

Conduct a comprehensive inspection every six months, including the liquid pump and pressure system.

Update and calibrate the stored cleaning program.

5、 Application scenarios

Medical testing: high-frequency applications such as clinical ELISA testing and infectious disease screening.

Research laboratory: Cleaning of sample plates in immunology and molecular biology research.

Food and environmental testing: pesticide residue, toxin testing, and water quality monitoring.

University teaching: As a standard equipment for ELISA teaching and experimental skills training.

6、 Purchase suggestions

When choosing a washing machine, it is recommended to consider the following aspects comprehensively:

Residual liquid volume: Whether it is ≤ 1 μ L/well determines the detection background level.

Compatibility: Can it support multiple board types (U/V/C/flat bottom).

Cleaning mode: Is there a multi-mode option that is compatible with different experimental systems.

User programming: Does it support custom scheme storage for easy and quick access.

After sales guarantee: Whether to provide long-term warranty and quick response service.

The 09 type automatic washing machine has advantages in these aspects and is a cost-effective choice for scientific research and clinical laboratories.

7、 Summary

The 09 automatic washing machine features intelligent operation, flexible cleaning mode, extremely low residual liquid volume, and compatibility with multiple plate types as its core highlights, solving the efficiency and accuracy problems in the ELISA cleaning process in the laboratory.

In conjunction with Changsha Shi Ge Yan Biotechnology Co., Ltd.'s three year warranty, only replacement without repair, this device not only improves the daily efficiency of the laboratory, but also provides long-term stable support for scientific research and clinical workers.

For laboratories considering upgrading their cleaning equipment, the 09 automatic washing machine is an ideal solution worth prioritizing.
