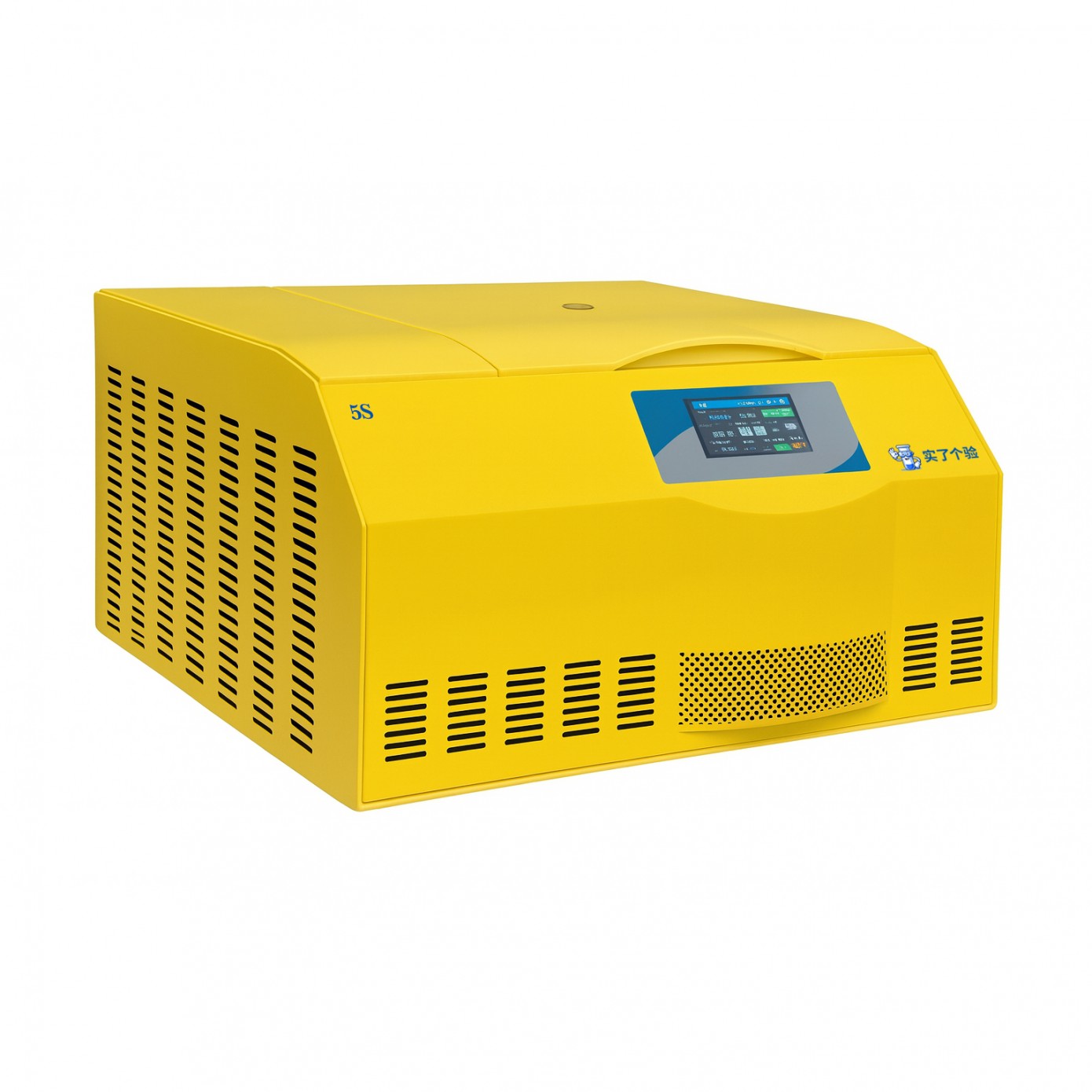

Desktop low-speed freeze centrifuge (item number: 5SR)

Manufacturer: Changsha Shi Ge Yan Biotechnology Co., Ltd

Warranty service: 3-year warranty, replacement only, no repair

Product Introduction

The 5SR desktop low-speed cryogenic centrifuge is a laboratory equipment that integrates safety, intelligence, and efficient separation functions. It is widely used in hospitals, blood stations, and research laboratories, and can efficiently separate and analyze serum, plasma, urine, and radioimmunoassay samples.

With its all steel body, 304 stainless steel centrifugal chamber, and powerful brushless variable frequency motor, 5SR not only has extremely high stability and safety, but also provides professional, accurate, and reliable separation solutions for biology, medicine, chemistry, and physics laboratories.

Core Highlights

High performance drive: using a high torque brushless variable frequency motor, maintenance free, dust-free, fast lifting speed, suitable for high-frequency experimental use.

Intelligent security control: equipped with induction automatic electric suction door lock and emergency door opening function, with automatic protection such as door lock detection, overspeed, imbalance, etc.

Humanized operation: High definition touch screen intelligent system, real-time display of speed, running time, temperature, lifting and lowering gear, rotor model, maximum centrifugal force, and date and time, with clear and intuitive information.

Flexible and diverse experimental options: Supports storing and calling 100 commonly used programs, providing 9 acceleration rates and 10 deceleration rates, easily adapting to different experimental needs.

Durable and sturdy: The whole machine is made of all steel structure, with a 304 stainless steel centrifugal chamber, multi-layer protection and three-level vibration reduction design, ensuring stable and reliable operation.

Rich rotor configuration: Supports aviation forged aluminum rotors (excluding multi tube frames) and various PTFE adapters, with a wide range of applications and multiple uses for one machine.

Thoughtful details: The hydraulic door cover reduces operational burden and can be equipped with rotor magnetic automatic recognition function to avoid misoperation and overspeed operation.

International quality certification: Passed CFDA filing and production qualification, in compliance with ISO9001, ISO13485 and CE standards, with guaranteed quality.

Technical Specifications

Maximum speed: 5000 r/min

Maximum centrifugal force: 4730 × g

Maximum capacity: 4 × 250 ml horizontal rotor

Noise level: ≤ 62 dBA

Timing range: 1 s to 99 h, 59 min, 59 s

Speed control accuracy: ± 10 r/min

Power supply: AC220V, 50Hz, 5A

Dimensions: 570 × 400 × 330 mm

Net weight: 41 kg

Packaging: Double layer cardboard box (size 640 × 510 × 430 mm)

Rotor and adapter configuration

Horizontal rotor

No 05624:4000 r/min, 4 × 12 × 5/7ml, 2880 × g (universal blood collection tube)

No 05625:4000 r/min, 4 × 250ml (square cup), 2830 × g (optional biosafety cover)

No 05628: 4000 r/min, 4 × 16 × 5ml blood collection tube, 2400 × g

No 05627:4000 r/min, 4 × 16 × 7ml blood collection tube, 2830 × g

No 05626: 4000 r/min, 4 × 13 × 10ml blood collection tube, 2830 × g

No 05629: 5000 r/min, 4 × 100ml, 4730 × g (optional basket)

No 05630：5000 r/min，4×50ml，4730×g

No 05634：4000 r/min，4×2×50ml / 4×2×100ml，3020×g

No 05632：4000 r/min，4×6×15ml，3020×g

No 05631:4000 r/min, 4 × 8 × 10ml blood collection tube, 2790 × g

No 05637:4000 r/min, 4 × 12 × 5ml blood collection tube, 2480 × g

No 05636:4000 r/min, 4 × 12 × 7ml blood collection tube, 2760 × g

No 05641:4000 r/min, 4 × 10 × 10ml blood collection tube, 2790 × g

No 05650: Enzyme linked immunosorbent assay plate rotor, 4000 r/min, 2 × 3 × 96 wells, 2490 × g

Angular low-speed rotor

No 05181：2000 r/min， 8 x Gable Milk Fat Meter, 750 x g

No 05139：5000 r/min，12×15ml，3080×g

No 05140：5000 r/min，24×15ml，3500×g

No 05142：5000 r/min，4×50ml，2520×g

No 05143：5000 r/min，6×50ml，2850×g

No 05144：5000 r/min，12×50ml，3860×g

No 05146：5000 r/min，4×100ml，2630×g

No 05147：5000 r/min，6×100ml，3130×g

No 05148：4000 r/min，12×100ml，2970×g

Application field

Medical institutions and blood stations: routine testing of serum, plasma, urine, etc., separation of blood components.

Research Laboratory: Cytology, Molecular Biology, Protein and Nucleic Acid Extraction.

Chemistry and Physics Experiment: Separation and Purification of Different Substances.

Radioimmunology research: Ensure the stability of temperature sensitive samples and avoid denaturation.

summary

The desktop low-speed cryogenic centrifuge (item number: 5SR) provides precise, safe, and efficient solutions for various experiments with strong motor power, flexible rotor configuration, intelligent operating system, and internationally certified quality assurance. Combined with the manufacturer's 3-year warranty, replacement only, no repair service commitment, it is not only an ideal choice for scientific research and medical experiments, but also a reliable partner for long-term stable work.
