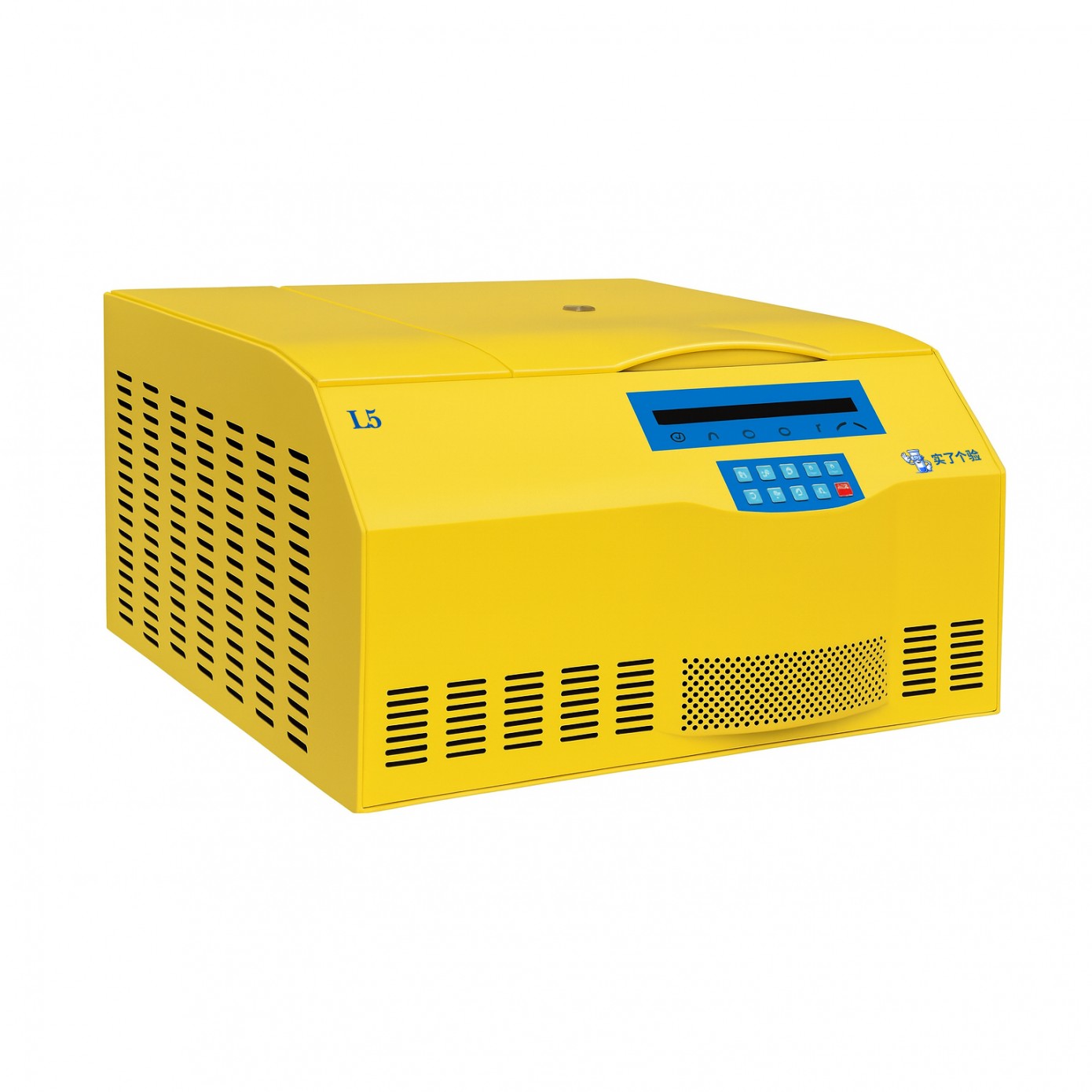

The L5R desktop low-speed cryogenic centrifuge is a high-performance experimental equipment designed specifically for research institutions, hospitals, blood stations, and testing laboratories. It combines low-speed centrifugation with freezing temperature control function, providing precise and stable freezing protection for temperature sensitive samples while ensuring efficient separation.
As one of the key models developed by Changsha Shi Ge Yan Biotechnology Co., Ltd., L5R adopts brushless DC variable frequency motor, imported fluorine free compressor unit, and intelligent microcomputer control system, which has the characteristics of powerful power, low noise, energy saving and environmental protection, and convenient operation. Its multiple rotor and adapter configurations enable it to process up to 40 samples at once, greatly improving laboratory efficiency.
This device not only meets the application needs of various fields such as molecular biology, clinical medicine, hematology, immunology, and chemical analysis, but also provides laboratory personnel with a safe, reliable, and intelligent experimental partner through stable structural design and multiple safety protection mechanisms.
Efficient brushless DC variable frequency motor
No maintenance required, avoiding carbon brush wear and dust pollution.
High torque, fast acceleration and deceleration, smooth operation.
Low energy consumption, noise control within ≤ 65 dB, suitable for long-term continuous use.
Precision freezing system
Adopting imported fluorine free compressor units, environmentally friendly and efficient.
Refrigerant R404A, temperature control range covers -20 ℃~40 ℃.
At the highest speed, the sample temperature can still be maintained below -4 ℃, effectively preventing the deactivation of thermosensitive substances.
Microcomputer intelligent control
Microcomputer processor precise control, digital display of speed, time, and temperature.
Support RPM/RCF conversion, visually display centrifugal force.
Can store and call 10 commonly used programs for standardized operation.
10 selectable lifting speeds to meet different sample separation requirements.
Safe and reliable design
The door cover is driven by an independent motor servo, making it easy to open and reducing operational intensity.
Equipped with automatic protection functions such as overspeed, overtemperature, and imbalance.
High quality steel structure+precision steel explosion-proof inner sleeve+304 stainless steel centrifugal chamber, three-layer protection for greater safety.
Convenient rotary loading and unloading system
The unique spring cone sleeve connection method allows for quick and easy loading and unloading of the spindle and rotor, with no directional requirements.
Safe and reliable, reducing the risk of misoperation.
Rich rotor selection
We offer a variety of horizontal and angular rotors with capacities ranging from 5 ml to 250 ml.
Support high temperature and high pressure sterilization, combined with transparent finger pressure cover, for more flexible operation.
One machine is versatile and can centrifuge up to 40 samples at a time.
Vibration reduction and balance
Three level vibration reduction system ensures stable operation.
Automatic balancing function, better centrifugal effect.
International certification and qualifications
Passed certifications such as CE, ISO9001, ISO13485, etc.
Having CFDA filing and production qualifications, with reliable quality.
Maximum speed: 5000 r/min
Maximum relative centrifugal force: 4730 × g
Maximum capacity: 4 × 250 ml
Lifting speed: 10 options to choose from
Speed control accuracy: ± 20 r/min
Temperature control range: -20 ℃~40 ℃
Temperature control accuracy: ± 1 ℃
Timing range: 1~9 h 59 min
RPM/RCF Conversion: Supports
Noise: ≤ 65 dB
Power supply: AC220V, 50Hz, 6A
Dimensions: 620 × 600 × 360 mm
Net weight: 118 kg
| serial number | rotor type | maximum speed (r/min) | maximum capacity (ml) | maximum centrifugal force (×g) | remarks |
|---|---|---|---|---|---|
| NO 05624 | Horizontal rotor | 4000 | 4 × 12 × 5/7 ml | 2880 | select |
| Horizontal rotor | 4000 | 4 × 250 ml(Round cup) | 2880 | select | |
| NO 05625 | Horizontal rotor | 4000 | 4 × 250 ml(Square Cup) | 2830 | select |
| NO 05627 | Horizontal rotor | 4000 | 4 × 16 × 7 ml blood collection tube | 2830 | select |
| NO 05626 | Horizontal rotor | 4000 | 4 × 13 × 10 ml blood collection tube | 2830 | select |
| NO 05628 | Horizontal rotor | 4000 | 4 × 16 × 5 ml blood collection tube | 2400 | select |
| NO 05218 | Stainless steel horizontal rotor body | - | - | - | select |
| NO 05630 | Horizontal rotor | 5000 | 4 × 50 ml | 4730 | select |
| NO 05629 | Horizontal rotor | 5000 | 4 × 100 ml | 4730 | select |
| NO 05634 | Horizontal rotor | 4000 | 4 × 2 × 50 ml / 100 ml | 3020 | select |
| NO 05632 | Horizontal rotor | 4000 | 4 × 6 × 15 ml | 3020 | select |
| NO 05631 | Horizontal rotor | 4000 | 4 × 8 × 10 ml | 2790 | select |
| NO 05641 | Horizontal rotor | 4000 | 4 × 10 × 10 ml blood collection tube | 2790 | select |
| NO 05636 | Horizontal rotor | 4000 | 4 × 12 × 7 ml blood collection tube | 2760 | select |
| NO 05637 | Horizontal rotor | 4000 | 4 × 12 × 5 ml blood collection tube | 2480 | select |
| NO 05650 | Enzyme linked immunosorbent assay plate rotor | 4000 | 2 × 3 × 96 holes | 2310 | select |
| NO 05181 | Low-speed angular rotor | 2000 | 8 × Gable milk fat meter | 750 | select |
| NO 05142 | Low-speed angular rotor | 5000 | 4 × 50 ml | 2520 | select |
| NO 05143 | Low-speed angular rotor | 5000 | 6 × 50 ml | 2850 | select |
| NO 05144 | Low-speed angular rotor | 5000 | 12 × 50 ml | 3860 | select |
| NO 05140 | Low-speed angular rotor | 5000 | 24 × 15 ml | 3500 | select |
| NO 05146 | Low-speed angular rotor | 5000 | 4 × 100 ml | 2630 | select |
| NO 05147 | Low-speed angular rotor | 5000 | 6 × 100 ml | 3130 | select |
| NO 05148 | Low-speed angular rotor | 4000 | 12 × 100 ml | 2970 | select |
Clinical Medicine and Blood Stations
Separation of plasma, serum, and blood cell components.
Pre transfusion testing and blood storage.
Molecular Biology and Cytology
Extraction and purification of proteins, DNA, and RNA.
Cell isolation and collection, virus precipitation.
Chemistry and Physics Experiment
Separation and purification of multi-component substances.
Temperature sensitive experimental sample processing.
radioimmunology
Conduct radiation immunology experiments in a frozen environment to ensure accurate data.
Warranty period: 3 years warranty.
Promise: If there are any problems with the equipment during the warranty period, we will implement a "replacement only, no repair" policy.
Support: The manufacturer provides full process operation training and technical support.
Service: 24/7 after-sales response, quickly resolving user issues.
The L5R desktop low-speed cryogenic centrifuge, with its core advantages of efficient power system, precise freezing control, intelligent operation, safety protection, and diverse rotor configurations, has become an indispensable high-end equipment for scientific research experiments and clinical medicine.
Changsha Shi Ge Yan Biotechnology Co., Ltd. provides users with a safe, stable, and reliable choice based on its strong technical strength, 3-year warranty, and commitment to only replace and not repair. Whether in research institutions, hospital blood stations, or teaching laboratories, L5R stands out with its outstanding performance and user-friendly design.
