Manufacturer: Changsha Shi Ge Yan Biotechnology Co., Ltd
Warranty service: 3-year warranty, replacement only, no repair

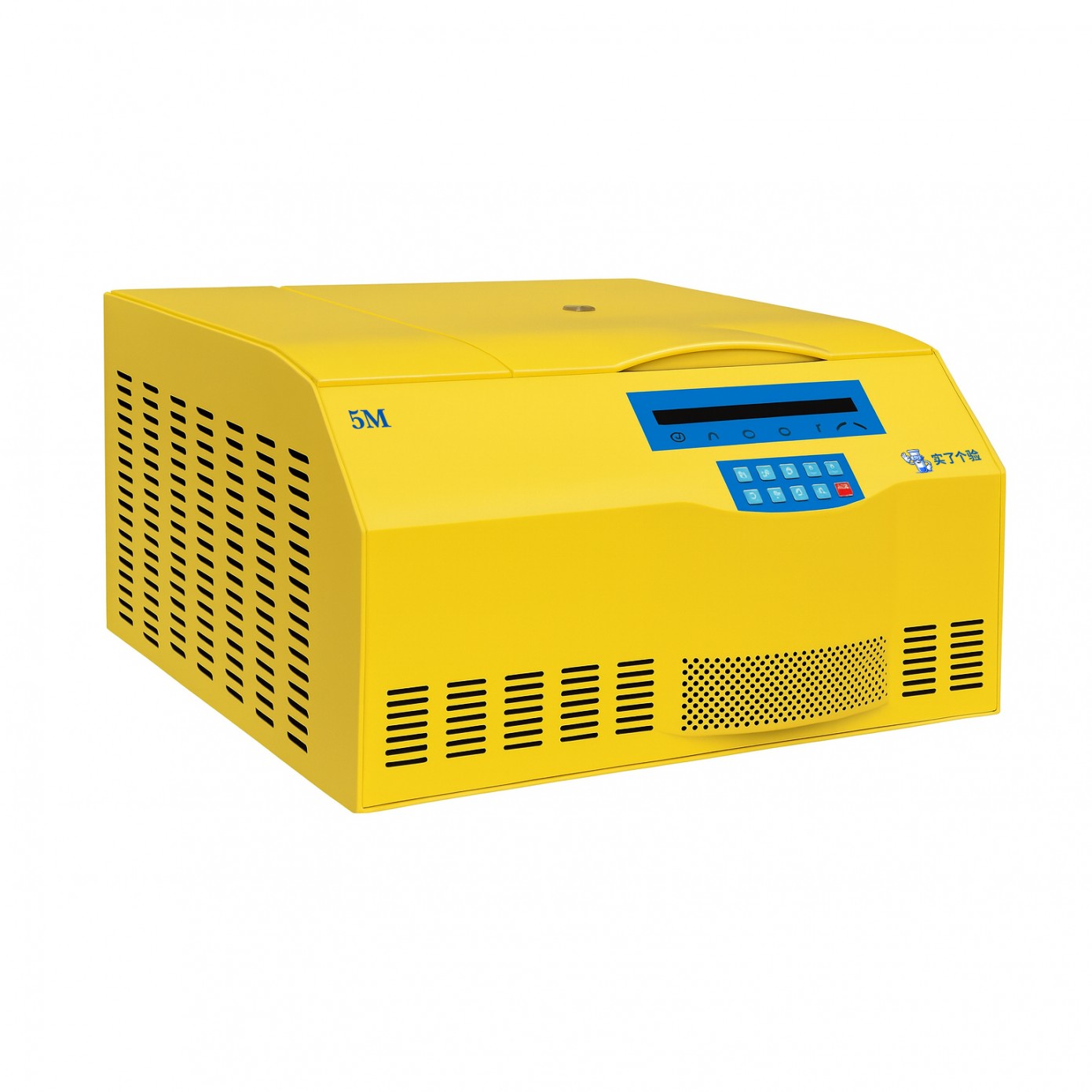

The 5MR desktop low-speed large capacity freeze centrifuge is a high-performance, multifunctional, and intelligent freeze centrifuge equipment launched by Changsha Shi Ge Yan Biotechnology Co., Ltd. for scientific research, medical, and industrial laboratories.
This model combines large capacity processing capability with precise temperature control performance. It adopts advanced brushless DC variable frequency motor, imported fluorine free compressor unit, and intelligent microcomputer control system to ensure that it can maintain low temperature stability and efficient separation effect even when processing large quantities of samples. Whether it's blood sample separation, virus precipitation, protein extraction, or chemical purification, 5MR is capable of handling them all.
As a high-capacity cryogenic centrifuge positioned in high-end laboratories, 5MR not only pursues stable performance, but also puts great effort into safety design and humanized experience. The body is made of all steel structure, 304 stainless steel centrifugal chamber, explosion-proof inner sleeve, and multiple safety protection mechanisms, allowing laboratory operators to use it with peace of mind.
EFFICIENT POWER SYSTEM
Equipped with brushless DC variable frequency motor, maintenance free, dust-free, and high torque.
Fast lifting speed meets the strict requirements for experimental efficiency and time control.
Keep running smoothly, even at high capacity and high speed, the noise is still below 65 dBA.
Precision cooling and temperature control system
Adopting imported fluorine free compressor units, paired with environmentally friendly R404A refrigerant.
Even at the highest rotational speed, the sample temperature can always be maintained at -4 ℃ or below.
The temperature control accuracy is as high as ± 1 ℃, ensuring the stability of the experimental samples.
intelligent control
Microcomputer processor precise control, digital display of parameters such as speed, temperature, time, etc.
Support button programming, parameters can be modified during operation, high flexibility.
It can store and call 10 sets of programs, making it easy to conduct standardized experiments quickly.
RPM/RCF one click switching display, intuitive and clear.
safety design
Automatic electric induction door lock with emergency unlocking function.
Triple protection for overspeed, overheating, and imbalance.
High quality steel body+precision steel explosion-proof inner sleeve+304 stainless steel centrifugal chamber, three-layer protection, safe and reliable.
Convenient rotor design
The unique spring cone sleeve connection method ensures a non directional connection between the rotor and the spindle, allowing for quick and safe loading and unloading.
Multiple rotors and adapters are available for selection, making one machine versatile.
Up to 160 samples can be centrifuged at a time, significantly increasing the experimental throughput.
damping system
Three level vibration reduction design and automatic balancing function ensure stable separation effect.
International Certification
Passed international quality system certifications such as CE, ISO9001, ISO13485, etc.
The product design complies with international laboratory safety regulations.
Maximum speed: 5000 r/min
Maximum relative centrifugal force: 4730 × g
Maximum capacity: 4 × 800 ml
Timing range: 99 hours and 59 minutes
RPM/RCF Conversion: Supports
Noise: ≤ 65 dB
Temperature control range: -20 ℃~40 ℃
Lifting speed: 10 options to choose from
Speed control accuracy: ± 20 r/min
Temperature control accuracy: ± 1 ℃
Power supply: AC220V, 50Hz, 7A
Dimensions: 700 × 715 × 420 mm
Net weight: 125 kg
Certification: CE, ISO
Horizontal rotor
NO 05207：4000 r/min，4 × 25 × 5/7 ml，3450 × g
Horizontal rotor: 4000 r/min, 4 × 800 ml (round cup), 3450 × g
NO 05608:4000 r/min, 4 × 500 ml (round cup), 3530 × g
NO 05609:4000 r/min, 4 × 500 ml (square cup), 3450 × g
NO 05611：4000 r/min， 4 × 4 × 96 well enzyme-linked immunosorbent assay plate, 2940 × g
NO 05610：4000 r/min，4 × 7 × 50 ml，3470 × g
NO 05612:4000 r/min, 4 × 600 ml (elliptical cup), 3530 × g
NO 05614:4000 r/min, 4 × 30 × 7 ml blood collection tube, 3140 × g
NO 05615:4000 r/min, 4 × 40 × 7 ml blood collection tube, 3270 × g
NO 05618:4000 r/min, 4 × 28 × 10 ml blood collection tube, 3270 × g
NO 05635：4000 r/min，4 × 2 × 100 ml，3020 × g
NO 05634：4000 r/min，4 × 2 × 50 ml，3200 × g
NO 05631：4000 r/min，4 × 8 × 15 ml，3200 × g
NO 05639：4000 r/min，4 × 16 × 5 ml，2530 × g
NO 05638：4000 r/min，4 × 16 × 7 ml，2890 × g
NO 05640：4000 r/min，4 × 12 × 10 ml，2880 × g
NO 05629：5000 r/min，4 × 1 × 50 ml，4730 × g
NO 05630：5000 r/min，4 × 1 × 100 ml，4730 × g
NO 05213：4000 r/min， 2 × 5 × 96 well enzyme-linked immunosorbent assay plate, 3210 × g
NO 05237：4000 r/min， 4 x Babbitt milk fat bottles, 3830 x g
ANGLE ROTOR
NO 05183：2000 r/min， 16 x Gabor fat meter, 896 x g
NO 05141：5000 r/min，30 × 15 ml，3830 × g
NO 05144：5000 r/min，12 × 50 ml，3860 × g
NO 05145：4000 r/min，24 × 50 ml，2970 × g
NO 05148：4000 r/min，12 × 100 ml，2970 × g
Clinical Medicine and Blood Stations
Separation of blood components: plasma, serum, red blood cells, white blood cells, etc.
Clinical testing, pre transfusion testing, blood preservation, etc.
Molecular Biology and Cytology
Extraction and purification of DNA and RNA.
Protein precipitation, virus precipitation, cell isolation and collection.
Chemistry and Physics Research
Separation and purification of multi-component substances.
Processing of sensitive samples under low temperature conditions.
radioimmunology
Low temperature protection of radioimmunology experimental samples ensures the authenticity and reliability of experimental data.
3-year warranty: If the equipment malfunctions during the warranty period, the policy of "replacement only, no repair" will be implemented to minimize laboratory downtime losses.
Full technical support: The manufacturer provides operation training, application guidance, and remote technical consultation.
Quick response service: The after-sales team responds 24/7 to ensure that customers have no worries.
The 5MR desktop low-speed large capacity cryogenic centrifuge, with its large capacity design, powerful power system, precise freezing temperature control, rich rotor selection, and strict safety guarantee, has become an ideal choice for scientific research laboratories and clinical medical applications.
Changsha Shi Ge Yan Biotechnology Co., Ltd. adheres to the concept of "high quality, high standards, and high service", and provides a 3-year warranty and after-sales commitment of only replacement and no repair for 5MR, allowing every user to choose and use with peace of mind.
