In modern life sciences, medical research, and the pharmaceutical industry, sample separation and preparation are key steps in experimental and production processes. With the continuous improvement of scientific research level and the increasing demand of industry, traditional small capacity, single function centrifugal equipment is gradually unable to meet the needs of large-scale, long-term, high-precision separation. Therefore, floor standing cryogenic centrifuges with high-speed performance, large capacity processing capabilities, and stable temperature control systems have gradually become indispensable core equipment for research institutes, hospital laboratories, and biopharmaceutical companies.

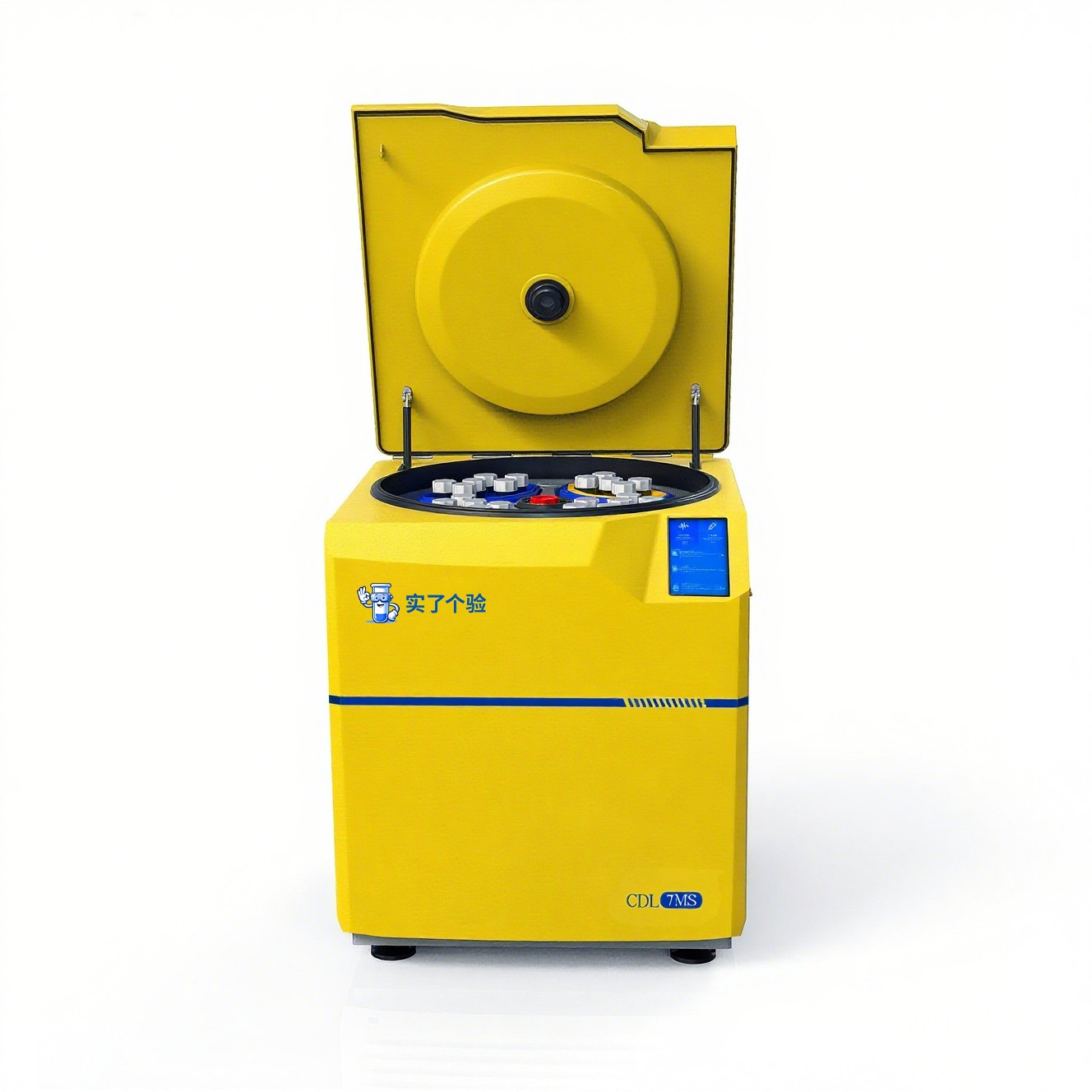

The high-speed and large capacity cryogenic centrifuge (item number: 7M) was born in this context. It not only reaches the international advanced level in terms of speed, capacity, temperature control accuracy, but also balances safety and intelligence, suitable for various scenarios such as blood product production, protein precipitation, cell separation, vaccine preparation, etc.
The basic principle of a centrifuge is to use the centrifugal force generated by high-speed rotation to separate components of different densities. Item number 7M adopts a brushless variable frequency motor direct drive rotor, which can generate a centrifugal force of over 14000 × g when rotating at high speed, allowing samples such as blood, proteins, and cells to quickly separate or precipitate in a short period of time.
In addition, the device is equipped with a refrigeration system that can control the temperature of the centrifuge chamber within the range of -20 ℃ to+40 ℃ during operation, ensuring the activity and stability of temperature sensitive biological samples. Combined with the pre cooling function, the chamber can be cooled down to the required experimental environment in a short period of time.
All steel body: made of thickened steel plates and multi-layer explosion-proof structure, durable and stable.
304 stainless steel inner cavity: corrosion-resistant, easy to clean, in compliance with GMP requirements.
Airflow insulation layer: reduces cold and heat exchange, ensuring stable temperature of the box.
Brushless variable frequency motor: high torque starting, low noise, maintenance free, long service life.
Spring cone sleeve rotor connection: ensures 360 ° locking of the rotor, non directional loading and unloading, and easy operation.
Automatic rotor recognition: prevents overspeed and ensures safety.
Imported fluorine free compressor, using environmentally friendly R404A refrigerant.
The dual cycle cooling process has high refrigeration efficiency and can still maintain -5 ℃ at the highest speed.
Rapid pre cooling: It only takes 5 minutes to drop from room temperature of 25 ℃ to 4 ℃.
5-inch LCD touch screen: intuitively displays speed, time, temperature, acceleration and deceleration curves.
Programmatic operation: Supports storage of 100 sets of acceleration and deceleration curves to meet different experimental needs.
Intelligent door lock: automatic induction adsorption, servo motor drive, with emergency unlocking function in case of power outage.
Overspeed Protection
overtemperature protection
Unbalance protection
Door cover protection
Automatic shutdown due to abnormal power supply
Maximum speed: 8000 rpm
Maximum relative centrifugal force: 14550 × g
Maximum capacity: 6 × 2400 mL (total capacity 14.4 L)
Timing range: 1 minute to 99 hours and 59 minutes
Speed accuracy: ± 20 rpm
Temperature control range: -20 ℃~+40 ℃
Temperature control accuracy: ± 1 ℃
Noise level: ≤ 65 dB (A)
Power supply: AC 380V, 50Hz, 15A
Overall dimensions: 940 × 890 × 1000 mm
Net weight: approximately 600 kg
Angular rotor: 6 × 1000 mL, maximum speed of 8000 rpm, maximum centrifugal force of 14550 × g.
Horizontal rotor: 6 × 2400 mL test cup, speed 4000 rpm, maximum centrifugal force 5330 × g.
Double hole cup rotor: 6 × 2 × 1000 mL, speed 4980 rpm, maximum centrifugal force 5460 × g.
Multiple rotor combinations can be flexibly selected according to experimental needs to meet the different process requirements of scientific research and production.
Plasma and serum separation
Preparation of blood components
Batch processing of large-scale blood products
Protein precipitation and purification
Vaccine and antibody preparation
Cell collection and clarification of culture medium
Preparation of molecular biology experimental samples
Large capacity cell separation
Extraction and Purification of Biomacromolecules
Food microbiological testing
Fermentation liquid separation
Processing of agricultural disease samples
Solid liquid separation in water quality testing
Soil suspended solids detection
Enrichment and precipitation of pollutants
Check if the power supply and rotor are installed correctly.
Sample balance: Place centrifuge tubes symmetrically with a weight difference of ≤ 0.1 g.
Set parameters for speed, time, and temperature.
Start the operation, observe the screen display and abnormal alarm.
After completion, wait for the rotor to completely stop before opening the cover and taking out the sample.
Clean the cavity, keep it dry, and prevent corrosion.
Daily cleaning: Wipe the rotor and cavity to avoid residual corrosive substances.
Regular inspection: Check the motor, bearings, and refrigeration system every six months.
Rotor management: Establish a usage ledger and replace according to the lifecycle.
Shutdown maintenance: When not in use for a long time, keep the door cover half open to prevent mold growth.
Large capacity: It can process 12 L samples at once, meeting the needs of large quantities.
High performance: high speed, stable temperature control, intelligent operation.
Multipurpose: Supports angular and horizontal rotors, suitable for various experimental scenarios.
Safe and reliable: Comprehensive protection system to reduce operational risks.
Convenient maintenance: No water jacket design, reducing maintenance costs.
The high-speed and large capacity cryogenic centrifuge (item number: 7M) combines the advantages of high speed, low temperature, large capacity, and intelligent control, and is widely used in fields such as medical, scientific research, pharmaceuticals, food and environmental monitoring. Its stability, safety, and flexibility make it an irreplaceable key equipment in modern laboratories and production workshops.
Manufacturer: Changsha Shi Ge Yan Biotechnology Co., Ltd., with a 3-year warranty of only replacement and no repair.
