Manufacturer:Changsha Shi Ge Yan Biotechnology Co., Ltd.
Warranty Policy: Three year warranty, replacement only, no repair
Centrifugal separation is the most common and essential operation in clinical testing, scientific research experiments, and teaching applications. With the continuous improvement of laboratory requirements for sample processing accuracy and efficiency, centrifuges not only need to have stable performance, but also must balance intelligence, flexibility, and safety.

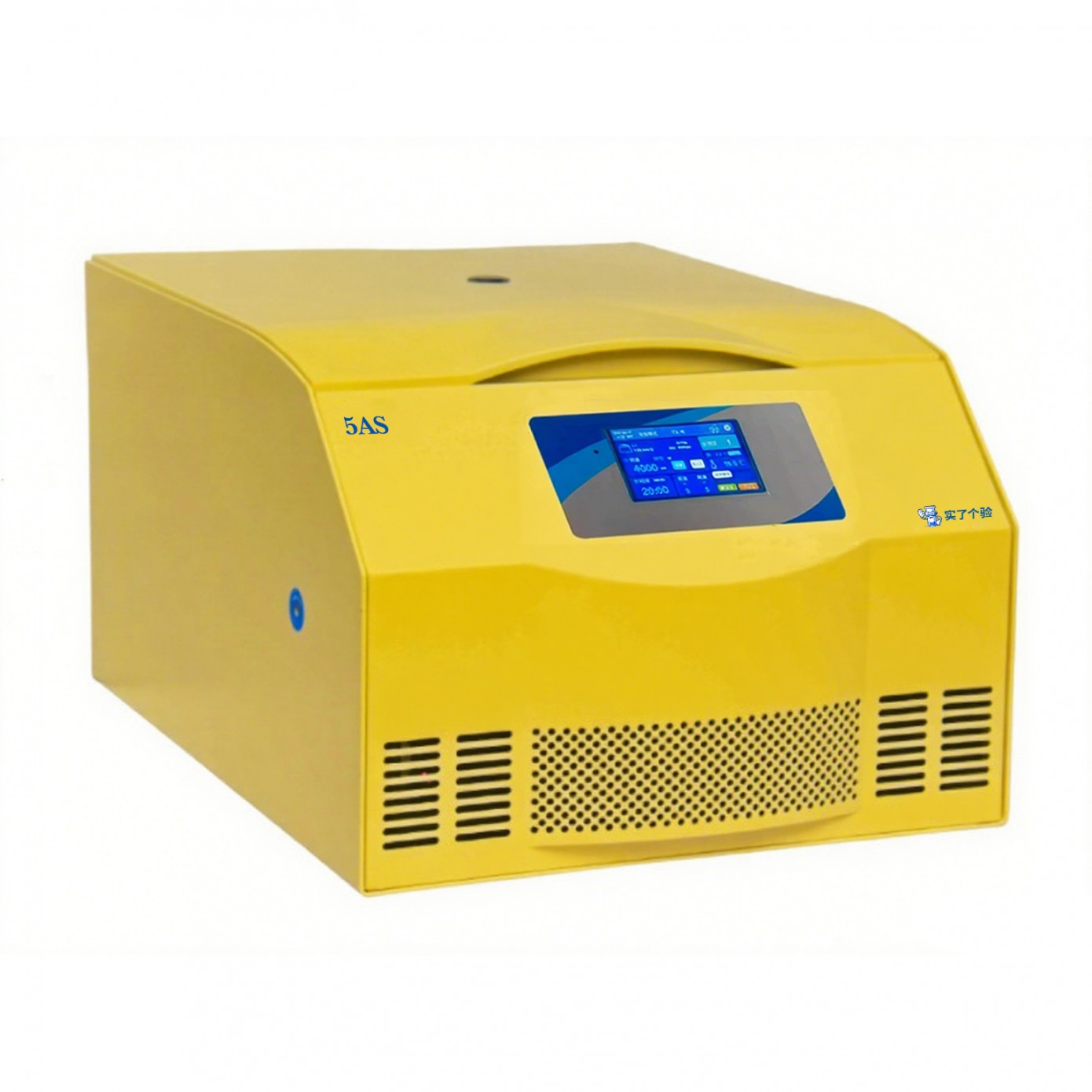

The 5AS desktop low-speed centrifuge is a high-performance device developed specifically for these needs.It combines precise control, intelligent systems, diverse rotor selection, and all-round protection design, and is widely used in hospitals, blood stations, research institutes, and university laboratories. It is particularly suitable for serum, plasma, urine, and radiation immune related testing.
Advanced power system
Adopting a high torque brushless variable frequency motor, it is maintenance free, dust-free, and has a long service life.
The lifting speed is fast and stable, significantly improving experimental efficiency.
intelligence control system
Built in microcomputer processor ensures precise and controllable operation.
High definition touch screen "intelligent system", real-time display of speed, running time, temperature, and acceleration/deceleration gear.
The interface synchronously displays the rotor model, maximum speed, and maximum centrifugal force, and records the real-time date and status.
Support storing and calling 100 sets of commonly used programs for easy daily repetitive experiments.
operating flexibility
Provide 9 acceleration rates and 10 deceleration rates, which can be freely set according to the characteristics of the sample.
The rotary head and spindle adopt a patented spring cone sleeve connection design, which is fast, easy to install and remove, and has no directionality.
Diversified configuration
Equipped with aviation forged aluminum rotors (excluding some), durable and reliable.
Provide multiple adapters that are compatible with different specifications of blood collection tubes, centrifuge tubes, and Corning bottles, achieving multi-purpose use of one machine.
Safety protection system
Equipped with induction electric suction door lock to eliminate the risk of accidentally opening the cover during operation.
Built in overspeed, imbalance, door lock self check and protection functions ensure safety and stability.
Multi layer protective structure, all steel body and stainless steel cavity, combined with a three-level vibration reduction system, operates stably and with low noise (≤ 60 dBA).
user-friendly design
The door cover is equipped with a hydraulic rod to reduce the burden of opening the cover.
Small footprint, suitable for limited space laboratories, low opening height, convenient for rack operation.
Maximum speed: 5000 r/min
Maximum centrifugal force: 4730 × g
Maximum capacity: 4 × 300 ml horizontal rotor
Speed accuracy: ± 10 r/min
Timing range: 1s-99h59min59s
Noise level: ≤ 60 dBA
Power requirements: AC220V, 50Hz, 5A
Net weight of the whole machine: 52 kg
Dimensions: 610 × 450 × 355 mm
Packaging size: 820 × 520 × 540 mm (wooden crate packaging)
This configuration enables the 5AS centrifuge to have both medium capacity and high precision, meeting both routine laboratory testing and professional applications in scientific research institutions.
The 5AS desktop low-speed centrifuge supports a variety of rotor combinations:
Horizontal rotor series
4 x 300 ml round/square cup, with optional biosafety cover.
4 × 14 × 5/7 ml, suitable for conventional blood collection tubes.
Vacuum tube configurations of 4 × 24 × 5 ml, 4 × 24 × 7 ml, and 4 × 18 × 10 ml meet clinical testing requirements.
Corning bottle specific rotor: 4 x 250 ml sharp bottom configuration.
Enzyme labeled plate rotor: 2 × 4 × 96 wells or 2 × 3 × 48 wells, suitable for immunology and biochemistry experiments.
Angular rotor series
24 × 15 ml and 30 × 15 ml, with maximum centrifugal forces of 3500 × g and 3830 × g, respectively.
12 × 50 ml, 24 × 50 ml, suitable for separating medium volume samples.
6 × 100 ml and 12 × 100 ml meet the requirements of large volume detection.
Specialized rotor
12 x Gabor fat meter, suitable for dairy product testing.
Specialized rotor and adapter for blood collection tubes, covering a capacity range of 2-15 ml.
This rich configuration enables the 5AS centrifuge to achieve the design concept of one machine with multiple functions.
All steel structure+304 stainless steel cavity ensures stable and reliable equipment.
Multi layer protection and three-level vibration reduction ensure safe and low-noise operation.
Complete certification qualifications: Passed ISO9001, ISO13485, CE international certification, with CFDA registration and production qualifications.
Hospitals and blood stations: Serum, plasma, and urine testing.
Research institutions: biology, chemistry, physics experiments.
Food and dairy testing: The rotor of the milk fat meter meets the analysis requirements of dairy products.
Immunology and Molecular Biology: Enzyme linked immunosorbent assay plate rotor supports related experimental operations.
University teaching laboratory: multifunctional configuration suitable for teaching demonstrations and student experiments.
manufactor:Changsha Shi Ge Yan Biotechnology Co., Ltd.
Three year warranty, replacement only, no repair: In case of non-human damage during the warranty period, the manufacturer will directly replace the entire machine or components.
Technical support: Provide operational training and remote guidance.
Long term maintenance: Continuously supply spare parts to ensure stable operation of equipment.
The 5AS desktop low-speed centrifuge is an intelligent device that balances medium capacity, precise control, and multifunctional adaptation.
Reason for recommendation:
The maximum speed is 5000 r/min, the maximum centrifugal force is 4730 × g, and the performance is stable.
High definition touch screen intelligent system, intuitive and convenient operation.
Diversified rotor configurations to achieve "one machine for multiple uses".
Complete safety protection measures, stable and low-noise operation.
Three year warranty, only replacement, no repair, with adequate after-sales support.
Therefore, the 5AS centrifuge is not only an efficient assistant in the laboratory, but also a long-term reliable partner in scientific research and clinical testing.
