Changsha Shi Ge Yan Biotechnology Co., Ltd. is located in Wangcheng Economic and Technological Development Zone, Changsha City, Hunan Province. It is a comprehensive experimental instrument manufacturer that integrates research and development, production, and sales. The company's mission is to serve medical testing, hematology research, and clinical diagnosis, and continuously launch high-performance experimental equipment that meets international standards.

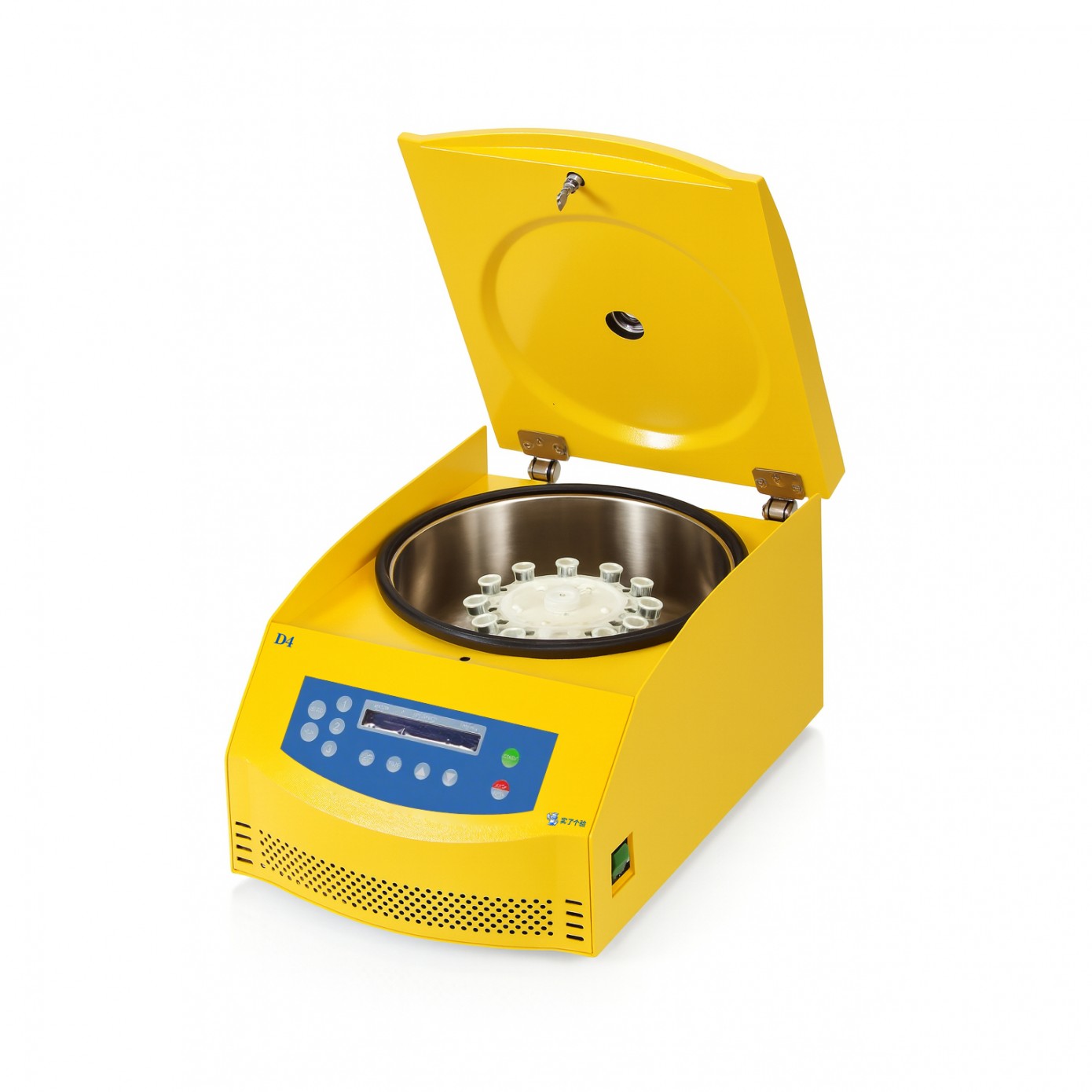

The D4 immune blood centrifuge is one of the key products launched by the company, adhering to the design concept of "safety, precision, and stability". It is particularly suitable for the washing of red and white blood cells, blood type determination, and extraction of serum and plasma in clinical immunohematology experiments.
D4 immune blood centrifuge is a A professional centrifuge designed specifically for washing red and white blood cells,widely used in hospital blood banks, transfusion departments, laboratories, research institutions, and medical experimental teaching in universities.
The equipment is based on a full steel structure and multi-layer explosion-proof design,Ensure high safety and stability even under high-intensity operation. At the same time, the equipment is equipped with a microcomputer processor and an LCD intelligent display system, which is easy to operate and provides intuitive information, greatly improving the efficiency and accuracy of experimental personnel.
Its main advantages are:
The all steel structure and multi-layer explosion-proof design ensure safer and more stable operation;
Electronic sensor door lock+emergency door opening device, reliable operation, with emergency protection in case of emergencies;
Self checking protection system, including door lock detection, overspeed and imbalance detection, to ensure experimental safety;
Specialized cell washing program with built-in red and white blood cell washing schemes, which can be easily activated by experimenters with just one click;
Brushless high torque DC motor, maintenance free, dust-free, fast speed up and down, extending service life;
Three level vibration reduction and automatic balancing design reduce noise, minimize mechanical wear, and ensure smoother operation;
Compact design, suitable for various laboratory spaces, with a low opening height for easy placement on countertops or test benches with racks.
| project | parameter |
|---|---|
| maximum speed | 4000 r/min |
| maximum centrifugal force | 2000 × g |
| maximum capacity | 12 × 7 ml |
| power supply | AC 220 V, 50 Hz, 1 A |
| timing range | 1 s ~ 99 min 59 s |
| noise level | ≤ 55 dBA |
| Speed control accuracy | ± 10 r/min |
| Overall dimensions | 470 × 320 × 250 mm |
| Net weight | 16 kg |
| Package dimensions | 565 × 410 × 340 mm |
Adapt to rotor:
No.05194 lymphocyte cleaning rotor (HLA)
2000 × g: Isolation of cultured lymphocytes cells
1000 × g: Platelet separation
1000 × g: lymphocyte cleaning
No.05194 Red Blood Cell Cleaning Rotor (SERO)
500 × g: Blood type determination, blood cell agglutination
1000 × g: Cross matching, anti globulin experiment
1000 × g: Blood cell cleaning, serum and plasma extraction
Comprehensive security upgrade
D4 adopts a fully steel structure and a 304 stainless steel centrifugal chamber, with multiple layers of protective function. Combining door lock detection, overspeed alarm, and imbalance protection system to ensure that accidents do not cause danger during experimental operation.
Intelligent operating system
The microcomputer processor precisely controls the operating parameters, and the LCD screen displays the speed, time, and centrifugal force in real time. Users can quickly program and switch parameters through buttons, improving operational convenience and result controllability.
Specialized Application Design
Different from conventional centrifuges, D4 is specially equipped with red and white blood cell washing programs, allowing experimenters to complete the corresponding process with just one click, significantly reducing experimental preparation time.
Strong and stable power system
Adopting a high torque brushless DC motor, it has the advantages of maintenance free, fast speed up and down, and low noise, which not only improves efficiency but also extends the service life of the equipment.
Humanized design that saves space
D4 has a compact appearance, small footprint, low opening height, and can be directly placed on ordinary laboratory countertops, suitable for laboratory environments with limited space.
D4 immune blood centrifuge is widely used in:
Clinical transfusion department and blood bank: used for blood type identification, cross typing, and separation of blood components.
Immunohematology experiments: red blood cell and white blood cell cleaning, immunoglobulin assay.
Hospital Laboratory Department: Separation and Extraction of Serum and Plasma Samples.
Research institutions: Immunology, cytology research, pre-treatment of lymphocyte culture.
Medical teaching in universities: Experimental courses related to medical testing and hematology.
Its wide applicability makes D4 an indispensable basic equipment in clinical and research laboratories.
Changsha Shi Ge Yan Biotechnology Co., Ltd. provide D4 immune blood centrifuge with:
Three year warranty, the entire machine only needs to be replaced and not repaired - fully protecting the rights and interests of users;
National after-sales support - quick response for repair and replacement;
Operation training and technical consultation - providing user manuals, remote guidance, and on-site training;
Original factory accessory supply - ensuring that the equipment always maintains optimal operating conditions.
This commitment fully reflects the company's confidence in product quality and its responsibility to customers.
The D4 immunohematology centrifuge has become an important tool for immunohematology experiments due to its high safety, specialized design, intelligent control, and stable and reliable performance. It not only improves experimental efficiency and accuracy of results, but also provides strong support for medical testing and clinical diagnosis.
Changsha Shi Ge Yan Biotechnology Co., Ltd. will continue to be driven by technological innovation, providing users with more advanced and reliable experimental instrument solutions to support the development of medicine and scientific research.
