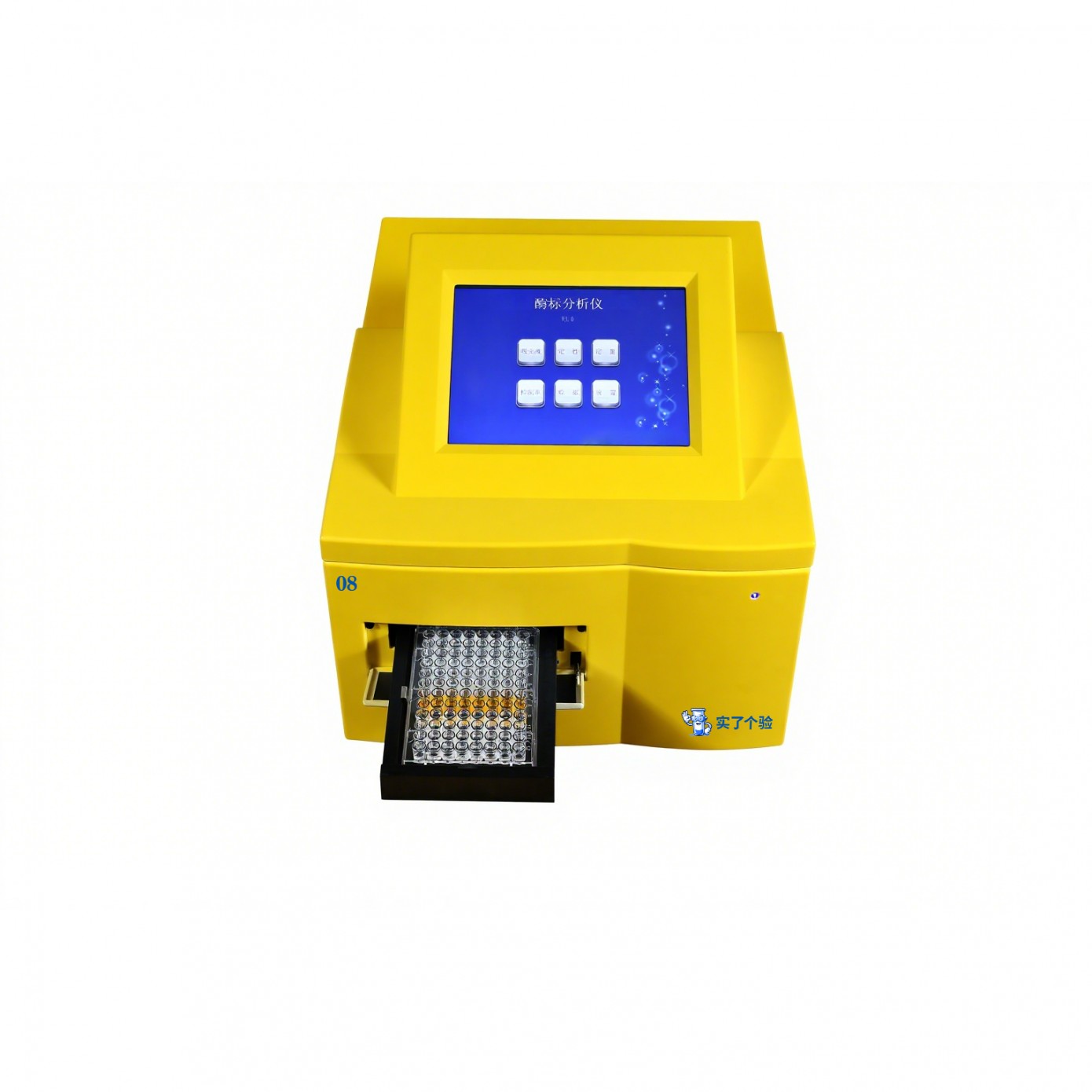

08 type full wavelength enzyme-linked immunosorbent assay analyzer | Complete guide for purchasing and using

1、 Positioning and core values: an all-in-one platform for clinical and scientific research

The product positioning of Type 08 can be summarized as "full wavelength coverage+multi-mode detection+stable optical platform". It combines an imported grating monochromator with a fully enclosed optical path, which can not only complete routine ELISA endpoint determination, but also perform dynamics, inhibition rate, multi wavelength linkage measurement, and spectral scanning, covering multi-level requirements from routine screening to method development. For laboratories that require a machine to balance clinical and scientific research, this is an intuitive path to reduce equipment redundancy and training costs.

2、 Key points for purchasing: see 6 key indicators clearly

1) Optical system and wavelength capability: Adopting a grating monochromator (imported grating) with optional 1/5/10 nm step size; grating range of 190-1000 nm, capable of handling the full spectrum tasks from ultraviolet to visible, and is the first criterion for distinguishing between "fixed filter" and "full wavelength platform".

2) Absorbance and linear range: The reading range is 0.000-5.000 Abs (@ 450 nm), and the linear range is 0.000-3.000 Abs, which ensures both strong signal unsaturation and low signal resolution, and is the basis for the universality of the method.

3) Accuracy and stability: CV ≤ 0.2%, stability ≤± 0.002 Abs, indication error ≤± 0.01 Abs, wavelength accuracy ≤± 1 nm, repeatability ≤± 0.2 nm; these indicators comprehensively reflect the consistency of multi day, multi batch, and cross person operations, and are the guarantee of quality control pass rate.

4) Interaction and ergonomics: 8-inch industrial grade LCD touch screen, supporting rotating viewing angle, comfortable sitting/standing posture, reducing long-term operation fatigue and shortening the time to get started.

5) Process details and auxiliary functions: Three stage vibration plate (0-255 s), optional incubation (room temperature+4 ℃ to 50 ℃, 37 ℃± 0.5 ℃), and can be equipped with a 1 cm colorimetric dish to improve the operability of method development and boundary scenarios.

6) System ecology and power supply interface: Randomly equipped with professional computer software (detection, fitting, threshold, quality control, database, report customization), data can be stored on USB flash drive/print/communication trace; AC100-240 V wide voltage and COM+USB make deployment more flexible.

3、 Functional anatomy: methodological configuration from "able to measure" to "measured well"

Endpoint method/kinetics/inhibition rate: covering clinical routine indicators, pharmacological kinetics curves, and inhibition rate evaluation in food and agricultural scenarios, combined with multi wavelength measurement to reduce interference and background effects.

Spectral scanning: Performing full wavelength scanning on micropores or colorimetric dishes to quickly identify absorption peak positions and shoulder peaks is an efficient tool for establishing/migrating methods, optimizing wavelength combinations, and evaluating impurity interference.

Resolution and internal calculation: Display/print resolution of 0.001 Abs, internal calculation accuracy of 0.0001 Abs; When you perform low absorption difference discrimination or threshold edge discrimination, the combination of algorithm and hardware background noise directly determines the repeatability of the "critical state".

Incubation+shaking plate linkage: For reaction systems that are temperature sensitive or highly dependent on mixing (such as enzyme kinetics, slowly rising antigen antibody systems), constant temperature+linear shaking plate can improve plate consistency and reaction reproducibility.

4、 Typical application: The concept of "method package" for four major scenarios

1) Medical testing/ELISA: using endpoint method or dual wavelength method to eliminate the influence of board and background, combined with preset threshold judgment and quality control evaluation module, forming a closed loop of "method interpretation quality control report" for batch archiving and traceability.

2) Research method development: First, use full wavelength scanning to find the optimal main/reference wavelength, then observe the reaction window and plateau period using kinetic mode, and finally lock the measurement parameters and vibration plate/incubation strategy to establish a transferable SOP.

3) Food and agricultural testing: The inhibition rate module can directly serve the rapid identification of pesticide residues, toxins, and functional additives, and cooperate with database management to achieve "batch based" traceability.

4) Pharmacology and Quality Control: Improve the ability to identify reaction specificity and potential interference through dynamic curves and multi wavelength validation, combined with indication error and stability indicators, to provide objective basis for method transfer and quality control release.

5、 Get started and process: a beginner friendly one-stop SOP

Equipment inspection: Connect AC100-240 V power supply and confirm that the screen and communication port are normal; If necessary, perform full path self-test and empty board baseline test.

Pre board preparation: Plan the board position and control hole, and suggest including blank/negative/positive; If doing multi wavelength/dynamics, please rehearse the timeline and reading interval.

Method configuration: Select measurement mode, target wavelength/scanning range, vibration plate intensity and time on the touch interface; If incubation is required, preheat to the target temperature before entering the plate.

Data and Quality Control: Enable threshold judgment, curve fitting, and quality control cards; After each batch is completed, store the results and original absorbance according to the rules and export them for backup.

Report and Archive: Use custom templates to unify the layout; After approval by the supervisor, a PDF/paper file will be formed to ensure cross project consistency.

6、 Maintenance and Calibration: Turning 'Stability' into Daily Life

Daily maintenance: Clean and wipe the board surface and cabin interior; Check if the vibration plate runs smoothly; Read whether the blank noise is within the historical range.

Weekly/Monthly Maintenance: Verify indication errors and repeatability; Perform wavelength accuracy/repeatability verification when necessary; Export and audit quality control and alarm logs.

Module care: Keep the incubation module dry after use; Regularly clean the colorimetric dish position; The communication port/USB should be kept dust-free to prevent poor contact.

Software upgrade: Update software and report templates periodically to ensure synchronization between algorithms, interfaces, and regulatory requirements.

7、 Deployment and Cost: Enabling 'Sustainable' Implementation

Space and power supply: The host weighs about 13 kg, with dimensions of 444 × 320 × (200-400) mm, leaving enough space for heat dissipation, flip cover, and cables; Using standard mains power, no additional voltage regulator is required.

Interfaces and peripherals: COM+USB can be connected to computers, printers, and USB drives; It is recommended to provide dedicated printing and independent storage media to form a "online+offline" dual backup.

Training and Conversion: Touch Control+Chinese Interface Shortens Migration Cycle; Map the old machine SOP to a four level structure of "mode wavelength interpretation quality control" for easy method transfer and comparison.

8、 Procurement List and Risk Point Warning

Essential projects: grating range/step, absorbance linearity and indication error, wavelength accuracy/repeatability, shaker and incubation capability, software quality control/database/reporting module, interface and power supply specifications.

Suggested options: incubation and colorimetric dish position (for method development/expansion), spare USB flash drive and printer, validation standard/filter.

Common risks: Ignoring threshold adjustments during method migration period; Multi wavelength joint measurement without peak position confirmation; No regular quality control chart and alarm review process has been established. The above SOP can significantly reduce risks.

9、 Conclusion: An Evolutionary Platform from General to Professional

From full wavelength gratings, stable absorbance, and strict wavelength accuracy, to multi-mode detection, spectral scanning, and scalable shaker/incubation modules, the 08 model covers the entire process from conventional scaling to method development with a configuration of "hard parameters, user-friendly interaction, and complete ecology". 8-inch rotary touch+complete computer software and interface, making it more operable in deployment, compliance, and traceability. The commitment of a three-year warranty for the entire machine further reduces the risk cost of the entire life cycle, providing a comprehensive solution for the laboratory that can be purchased, used, managed, and kept. For teams that require both stable throughput and continuous exploration, the 08 model is a core base that can expand with business growth.

Note: The above key parameters and functional points are all from the technical information page you provided, including optical system/range, absorbance and linear range, wavelength accuracy and repeatability, support for shaker/incubation and colorimetric dish, display and interface, power supply and size weight, supporting software and three-year warranty, etc. The actual configuration and specifications shall be subject to the final supply list.
