——Changsha Shi Ge Yan Biotechnology Co., Ltd. production

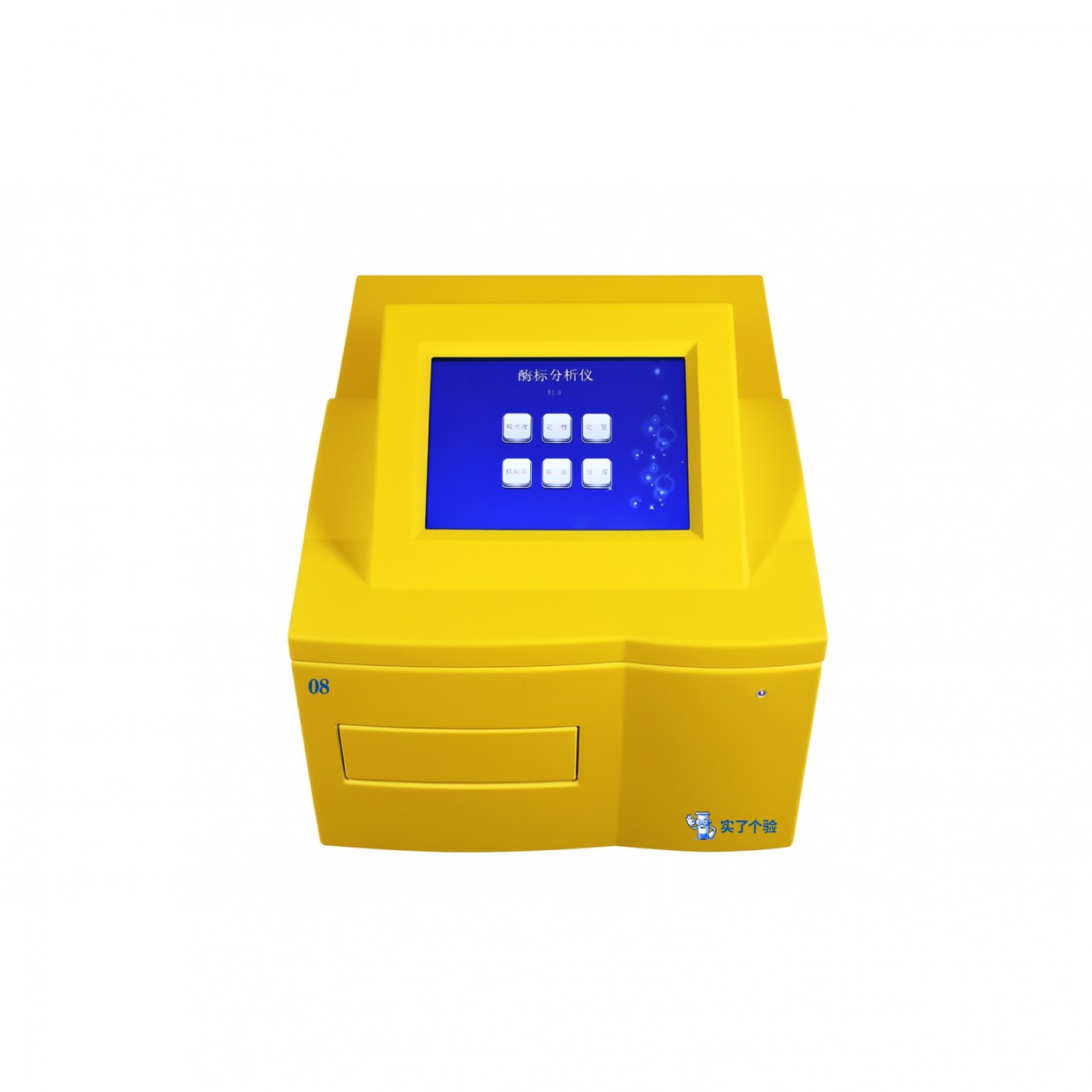

The 08 type full wavelength enzyme-linked immunosorbent assay analyzer is a high-performance and multifunctional laboratory testing equipment designed and manufactured by Changsha Shi Ge Yan Biotechnology Co., Ltd.This device adopts an imported grating monochromator and a fully enclosed optical path system,Not only can it achieve conventional endpoint methods and dynamic measurements, but it also supports spectral scanning and multi wavelength detection, greatly expanding the applicability of the experiment.
The whole machine is equipped with an 8-inch industrial grade LCD touch screen and innovatively adopts a rotating screen design,
Enable users to obtain comfortable operating angles in different experimental environments. Combined with professional computer analysis software, it can achieve a complete closed loop from experimental detection to data processing, quality control evaluation, and result output.
The manufacturer solemnly promises that the entire machine is guaranteed for three years, with only replacement and no repair, to maximize the user's experience and experimental progress.
8-inch industrial grade LCD screen, full touch operation, responsive;
Innovative rotating screen structure, supporting both sitting and standing perspectives, reducing fatigue caused by prolonged operation;
The interface layout is intuitive, and the sample layout, detection mode, and result display are clear at a glance.
Adopting imported high-performance grating monochromator, the optical system is stable with low stray light;
The grating step accuracy can reach 1/5/10 nm, and the wavelength range covers 190-1000nm, which can meet the needs of various types of experiments in scientific research;
The absorbance resolution is displayed as 0.001Abs, and the internal calculation accuracy can reach 0.0001Abs.
Support endpoint method, kinetic method, inhibition rate detection;
Can perform single wavelength, dual wavelength, and multi wavelength measurements;
Equipped with spectral scanning function, it can perform full wavelength scanning on microplates or colorimetric dishes.
Vibration board function: Three levels of amplitude can be selected, and the time can be adjusted (0-255 seconds);
Incubation function (optional): Room temperature+4 ℃ to 50 ℃, temperature control accuracy ± 0.5 ℃;
Supports standard 1cm colorimetric dishes, suitable for multi scene detection.
Randomly equipped with professional computer software, with functions covering:
Project testing and experimental plan management;
Data processing and curve fitting;
Threshold judgment and quality control evaluation;
Database management and customization of experimental reports.
Support data export and USB storage for laboratory information management.
The power supply supports AC100-240V 50/60Hz wide voltage input and is available worldwide;
The interface includes COM+USB, which can connect computers, printers, and USB drives to enhance the traceability of experimental data.
Optical system: imported grating monochromator, step 1/5/10nm
Wavelength range: 190-1000nm
Absorption range: 0.000-5.000Abs (@ 450nm)
Linear range: 0.000-3.000 Abs (@ 450nm)
Repeatability: CV ≤ 0.2%
Stability: ≤± 0.002Abs
Indication error: ≤± 0.01Abs
Wavelength accuracy: ≤± 1nm
Wavelength repeatability: ≤± 0.2nm
Resolution: 0.001Abs (display/print), internal calculation 0.0001Abs
Vibration board function: adjustable in three levels, time 0-255 seconds
Incubation function: Room temperature+4 ℃~50 ℃, accuracy 37 ℃± 0.5 ℃ (optional)
Colorimetric dish: Standard 1cm (optional)
Interface: COM+USB
Power supply: AC100-240V, 50/60Hz
Weight: Approximately 13kg
Size: 444 × 320 × (200-400) mm
Medical Clinical Laboratory
ELISA detection and multiple immunological tests;
Infectious disease screening and tumor marker testing;
Dynamics experiments and drug metabolism research.
Research laboratory
Basic experiments in molecular biology, immunology, and pharmacology;
Enzyme activity analysis and inhibitor research;
University teaching experiments are suitable for both teaching and research purposes.
Food and Agricultural Testing
Food safety testing: testing for pesticide residues, toxins, and additives;
Agricultural research: inhibition rate analysis and determination of food nutritional components.
Drug development and quality control
New drug screening and efficacy evaluation;
Pharmacodynamic experiments and preclinical testing;
Quality monitoring during the production process.
Changsha Shi Ge Yan Biotechnology Co., Ltd. provides a comprehensive after-sales system for the 08 type full wavelength enzyme-linked immunosorbent assay analyzer:
Warranty Policy
The whole machine has a three-year warranty;
Implement the policy of 'only replacing without repairing' to effectively avoid the risk of experimental downtime.
Training and Support
Provide installation, debugging, and operation training;
Provide remote technical guidance and on-site services.
Accessories and consumables
Long term supply of filters and accessories from the original factory;
Ensure long-term stable operation of the equipment.
technical response
24/7 customer service support;
Software upgrade and feature expansion services.
Changsha Shi Ge Yan Biotechnology Co., Ltd. is located in Wangcheng Economic and Technological Development Zone, Changsha, Hunan Province. It is a leading laboratory instrument research and manufacturing enterprise in China. The company has obtained international certifications such as ISO9001, ISO13485, and CE, and its products have been widely used in research institutes, hospital inspection departments, food and environmental testing centers, and university teaching platforms.
The company adheres to the concept of "quality as the root, innovation as the foundation", continuously innovates and researches, with intelligence, reliability, and durability as the core, providing users with high-quality experimental equipment and perfect after-sales support.
As the core product of Changsha Shi Ge Yan Biotechnology Co., Ltd., the 08 type full wavelength enzyme-linked immunosorbent assay analyzer,with high-performance optical systems, comprehensive testing modes, professional data processing software, and a three-year warranty, as well as replacement only after-sales service, it has become a long-term trusted testing platform in the laboratory.
It not only meets the clinical needs of medical testing, but also supports diversified applications in scientific research, food safety, and drug development. It is a versatile laboratory equipment that combines professionalism, reliability, and scalability.
