01 type enzyme-linked immunosorbent assay analyzer

——Changsha Shi Ge Yan Biotechnology Co., Ltd. production

1、Brief introduction

The 01 type enzyme-linked immunosorbent assay analyzer is an intelligent laboratory testing equipment independently developed and produced by Changsha Shi Ge Yan Biotechnology Co., Ltd. This product adheres to the design principles of“Accurate, stable, intelligent, and convenient”The concept combines advanced optical detection technology with user-friendly interactive systems to provide an efficient and reliable detection platform for clinical medicine, scientific research experiments, food safety, and agricultural testing.

As one of the key products of the enzyme-linked immunosorbent assay (ELISA) series launched by the company, the 01 model combines a compact and portable appearance design, stable and efficient detection performance, multi-mode detection function, and complete software support. It also provides a three-year warranty and a promise of only replacement and no repair after sales, fully reflecting the company's confidence in product quality and responsibility to customers.

2、 Main product features

1. Exquisite design and convenient operation

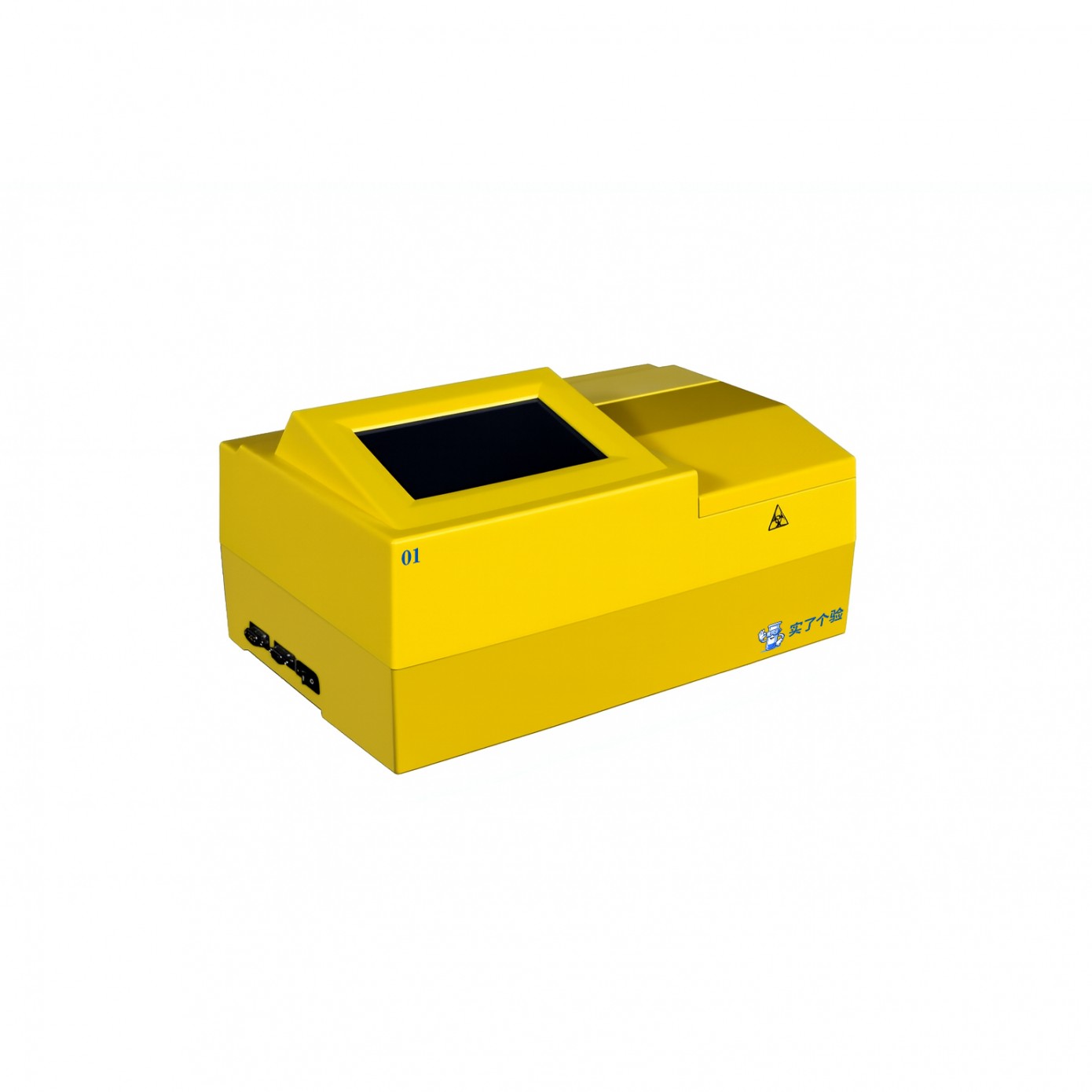

The 01 type enzyme-linked immunosorbent assay analyzer adopts a lightweight design, with a total weight of about 6kg and a size of only 400 × 260 × 200mm, making it easy to flexibly place and move in the laboratory. A 7-inch color LCD screen with touch operation provides an intuitive and simple interface, allowing users to quickly get started without complex training.

2. High precision optical system

• Equipped with DC12V 22W imported halogen lamps, supporting power energy-saving management;

• Using an 8-channel vertical optical path system to ensure detection speed and stability;

• Fully enclosed optical path design to avoid external light interference and ensure long-term stable operation;

• Resolution up to 0.001Abs, accuracy ≤± 0.01Abs, repeatability ≤ 0.3%.

3. Multi functional detection mode

The 01 type enzyme-linked immunosorbent assay analyzer supports multiple detection methods and is suitable for different experimental scenarios:

• Endpoint method, two-point method, dynamic method;

• Single wavelength and dual wavelength measurement modes;

• Equipped with a suppression rate measurement module,Especially suitable for food and agricultural safety testing.

4. Vibration plate and uniformity guarantee

• The amplitude of the vibrating plate can be adjusted in three levels, and the time can be set within the range of 0-255 seconds;

• The sample mixing effect is good and the experimental repeatability is strong.

5. Professional analysis software support

Equipped with computerized enzyme-linked immunosorbent assay software, including:

• Project testing and data processing;

Curve fitting and threshold judgment;

Quality control evaluation and database management;

Customize report templates.

This software greatly improves the efficiency of data analysis and the traceability of experimental results.

6. International power supply design

The power adapter range is AC100-240V, 50/60Hz, supporting global use and meeting the needs of different experimental environments.

3、 Technical parameters

• Light source: DC12V 22W imported halogen lamp

• Optical path system: 8-channel vertical optical path

• Wavelength range: 400-1000nm

• Filter: Standard configuration includes 405, 450, 492, and 630nm filters; the filter wheel can accommodate 15 filters, and other wavelengths are optional

• Reading range: 0-4.000Abs

• Linear range:0–3.000Abs

• Resolution:0.001Abs

• Accuracy:≤±0.01Abs

• Stability:≤±0.003Abs

• Repetitiveness:≤0.3%

• Vibration board function:Three levels adjustable, time 0-255 seconds

• Display Operation:7-inch color touch screen, visual display of layout and overall board information

• Detection modes: endpoint method, two-point method, kinetic method, inhibition rate

• Software functions: detection and analysis, curve fitting, quality control evaluation, database management, report customization

• Power Supply: AC100–240V 50/60Hz，output DC12V 5A

• Net weight: approximately 6kg

• Dimensions: 400 × 260 × 200mm

4、 Application Fields

1. Medical Clinical Laboratory

The 01 type enzyme-linked immunosorbent assay analyzer can be widely used in hospital laboratories and disease control centers, and is suitable for:

• ELISA detection;

• Infectious disease screening (hepatitis B, AIDS, etc.);

• Detection of endocrine hormone levels and analysis of tumor markers.

2. Research and University Teaching

• Used for molecular biology, immunology, and pharmacology experiments;

• Basic testing in experimental courses and scientific research training in universities.

3. Food and agricultural testing

• Detection of pesticide residues, veterinary drug residues, and toxins in food;

• Inhibition rate analysis and food safety testing in the agricultural field.

4. Drug development and quality control

• Pharmacology and toxicology experiments;

• Drug quality analysis and preclinical research.

5、 After sales and guarantee

Changsha Shi Ge Yan Biotechnology Co., Ltd. provides a comprehensive after-sales system for the 01 type enzyme-linked immunosorbent assay analyzer:

1. Warranty Policy

   The whole machine has a three-year warranty;

   Adhere to the principle of 'only replacing without repairing' to ensure that the experimental progress is not affected.

2. Training Services

   Provide installation and debugging services;

   Provide user training and remote guidance to help users quickly get started.

3. Technical Support

   7 × 24-hour response mechanism;

   Combining remote diagnosis with on-site support to quickly solve problems.

4. Long term accessory supply

   Provide genuine factory accessories and consumables;

   Ensure long-term stable operation of the equipment.

6、 Company Introduction

Changsha Shi Ge Yan Biotechnology Co., Ltd. located in Wangcheng Economic and Technological Development Zone, Changsha, Hunan, we are a professional laboratory equipment manufacturer in China.The company has obtained international certifications such as ISO9001, ISO13485, and CE, and has a comprehensive system for research and development, production, and quality management.

The company adheres to the concept of "quality as the root, innovation as the foundation", insists on independent research and technological innovation, and its products have been widely used in domestic and foreign research institutes, medical testing centers, and university laboratories.

7、 Conclusion

The 01 enzyme-linked immunosorbent assay analyzer is an intelligent detection device launched by Changsha Shi Ge Yan Biotechnology Co., Ltd. for scientific research, medical treatment, and detection fields.It provides users with efficient and reliable experimental tools with a compact and convenient design, stable and reliable detection performance, comprehensive functional modes, and a three-year warranty, with a service commitment of only replacement and no repair.

This product is not only an enzyme-linked immunosorbent assay reader, but also an important guarantee for the long-term stable operation of the laboratory.
