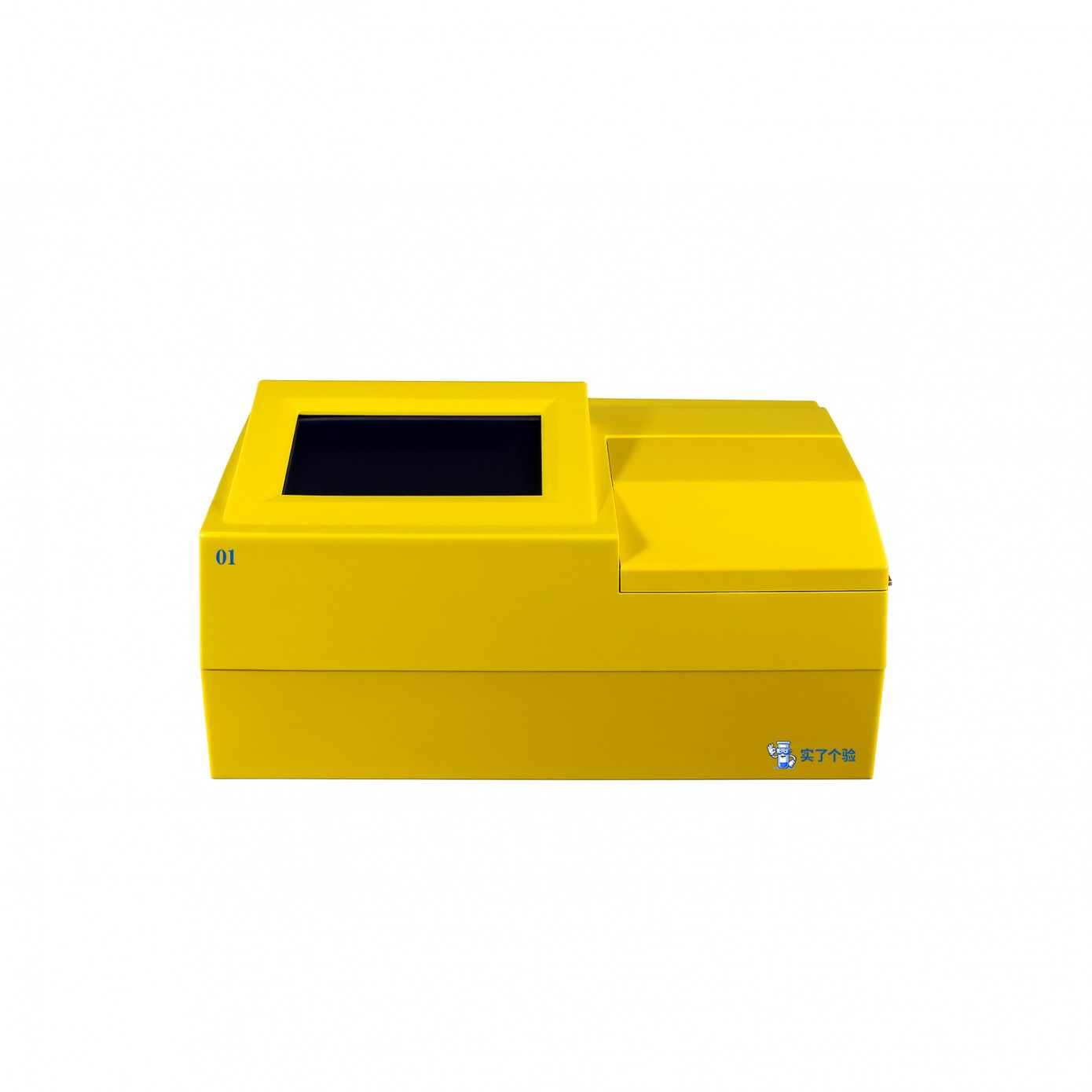

01 type enzyme-linked immunosorbent assay analyzer

——Changsha Shi Ge Yan Biotechnology Co., Ltd. production

1、 Product Overview

The 01 enzyme-linked immunosorbent assay analyzer is a new laboratory testing equipment independently developed and produced by Changsha Shi Ge Yan Biotechnology Co., Ltd.The device is designed with precision detection, intelligent interaction, stable performance, and convenient operation as its core concepts, and is suitable for various application scenarios such as research institutes, medical inspection, food safety monitoring, and agricultural testing.

The whole machine integrates multi-mode functions such as endpoint method, dynamic method, two-point method, and suppression rate detection while maintaining its small and portable size. Combined with a 7-inch color touch screen, it can provide an intuitive and easy to operate user experience. The equipment adopts imported halogen lamp light source, 8-channel vertical light path system and fully enclosed optical structure to ensure the accuracy and stability of data.

The manufacturer solemnly promises that the entire machine is guaranteed for three years, with only replacement and no repair, truly solving the worries of scientific research and testing users.

2、 Core product features

1. Exquisite design, portable and easy to use

The net weight of the 01 enzyme-linked immunosorbent assay analyzer is only about 6kg, with dimensions of 400mm × 260mm × 200mm. It is small in size and lightweight, making it easy for researchers to move and deploy at any time.

2. Intuitive operation interface

Equipped with a 7-inch color LCD screen and full touch operation; Support visual board layout function, and the entire board data can be displayed in real-time. Users can quickly master the operating methods without additional training.

3. Precise detection system

• The light source adopts DC12V 22W imported halogen lampEquipped with energy-saving management function for power supply;

• The optical path system is an 8-channel vertical optical path to avoid optical interference and maintain stability over the long term;

• Reading range 0-4.000Abs, linear range 0-3.000Abs, resolution up to 0.001Abs;

• Accuracy ≤± 0.01Abs, stability ≤± 0.003Abs, repeatability ≤ 0.3%.

4. Multi mode measurement

• Endpoint method, two-point method, dynamic measurement;

• Single wavelength and dual wavelength measurement modes can be freely switched;

• Configure inhibition rate measurement module, especially suitable for agricultural and food safety testing.

5. Vibration board and supporting functions

• The amplitude of the vibration plate can be adjusted in three levels, and the vibration plate time can be set from 0 to 255 seconds;

• The sample mixing is more uniform, and the detection results are more reliable.

6. Professional software support

Randomly equipped with computer-based enzyme-linked immunosorbent assay (ELISA) analysis software, which includes the following functions:

• Project testing and data processing;

• Curve fitting and threshold judgment;

• Quality control evaluation and database management;

• Customize the format of experimental reports.

This software significantly improves laboratory information management and data traceability.

7. Wide voltage design

Using AC100-240V 50/60Hz adapter input, it can be used globally and is suitable for cross regional deployment.

3、 Main technical parameters

• Light source:DC12V 22W imported halogen lamp

• Optical system:8-channel vertical optical path

• Wavelength range:400–1000nm

• Optical filter:Standard configuration includes 405nm, 450nm, 492nm, and 630nm; The filter wheel can load 15 pieces at the same time, and other wavelengths can be optionally selected

• Reading range:0–4.000Abs

• Linear range:0–3.000Abs

• Resolution:0.001Abs

• Accuracy:≤±0.01Abs

• Stability:≤±0.003Abs

• Repetitiveness:≤0.3%

• Vibration board function:Three levels of adjustable amplitude, time 0-255 seconds

• Display Operation:7-inch color touch screen, visual board layout, display of entire board information

• Software features:Detection, analysis, quality control, and report generation

• Detection Mode:Endpoint method, two-point method, kinetic method, inhibition rate detection

• Power supply:AC100–240V 50/60Hz，Output DC12V 5A

• Size:400 × 260 × 200mm

• Weight: Approximately 6kg

4、 Application Fields

1. Medical Clinical Laboratory

• Various ELISA tests;

• Serological screening of infectious diseases (such as hepatitis B, AIDS, etc.);

• Hormone levels and tumor marker detection.

2. research laboratory

• Molecular biology and immunology research;

• Pharmacology and toxicology experiments;

• Routine testing in university teaching experiments.

3. Food and agricultural testing

• Detection of pesticide residues and toxins in food;

• Analysis of inhibition rate in the agricultural sector;

• Routine indicator testing in water quality and environmental monitoring.

4. Drug development and quality control

• Drug screening and pharmacological testing;

• Preclinical research and production quality control.

5、 After sales and guarantee

Changsha Shi Ge Yan Biotechnology Co., Ltd. always adheres to the service concept of "customer-centric" and provides comprehensive after-sales service for the 01 enzyme-linked immunosorbent assay analyzer:

Warranty Policy

Whole machine warranty three years；

Implement only replacement without repair to ensure uninterrupted user experimentation process.

Training and guidance

Provide installation, debugging, and operation training;

Support remote technical guidance and on-site service.

Technical Support

24/7 technical response;

Combining remote diagnosis with local maintenance.

Accessories and consumables

Long term supply of accessories and filters from the original factory;

Ensure long-term stable operation of the equipment.

6、 Company Profile

Changsha Shi Ge Yan Biotechnology Co., Ltd.， Located in Wangcheng Economic and Technological Development Zone, Changsha, Hunan, it is a well-known laboratory instrument manufacturing enterprise in China. The company's products have passed international quality system certifications such as ISO9001, ISO13485, CE, etc., and have a complete R&D, production, and after-sales system.

The company adheres to the concept of "quality as the root, innovation as the foundation", and continues to launch reliable, intelligent, and durable laboratory equipment. The products have been widely used in scientific research, medical care, food safety, and university teaching fields.

7、 Summary

The 01 enzyme-linked immunosorbent assay analyzer is designed with precision detection, intelligent interaction, convenient operation, and stable performance as its core. With a three-year warranty and a commitment to only replace and not repair, it provides a reliable tool for researchers, medical inspectors, and food safety inspectors.

It is suitable for high-frequency testing in clinical laboratories, as well as routine analysis in scientific research, teaching, and food agriculture fields. It is a professional enzyme-linked immunosorbent assay analyzer that truly balances reliability, flexibility, and practicality.
