In modern laboratories, centrifuges have become indispensable basic equipment. Whether for cell separation, nucleic acid extraction, or protein purification, centrifuges play a crucial role in fields such as biology, medicine, food testing, and environmental monitoring. Especially for centrifugation needs that require high speed, precise temperature control, and the ability to handle micro-samples, high-speed refrigerated centrifuges are the optimal choice.

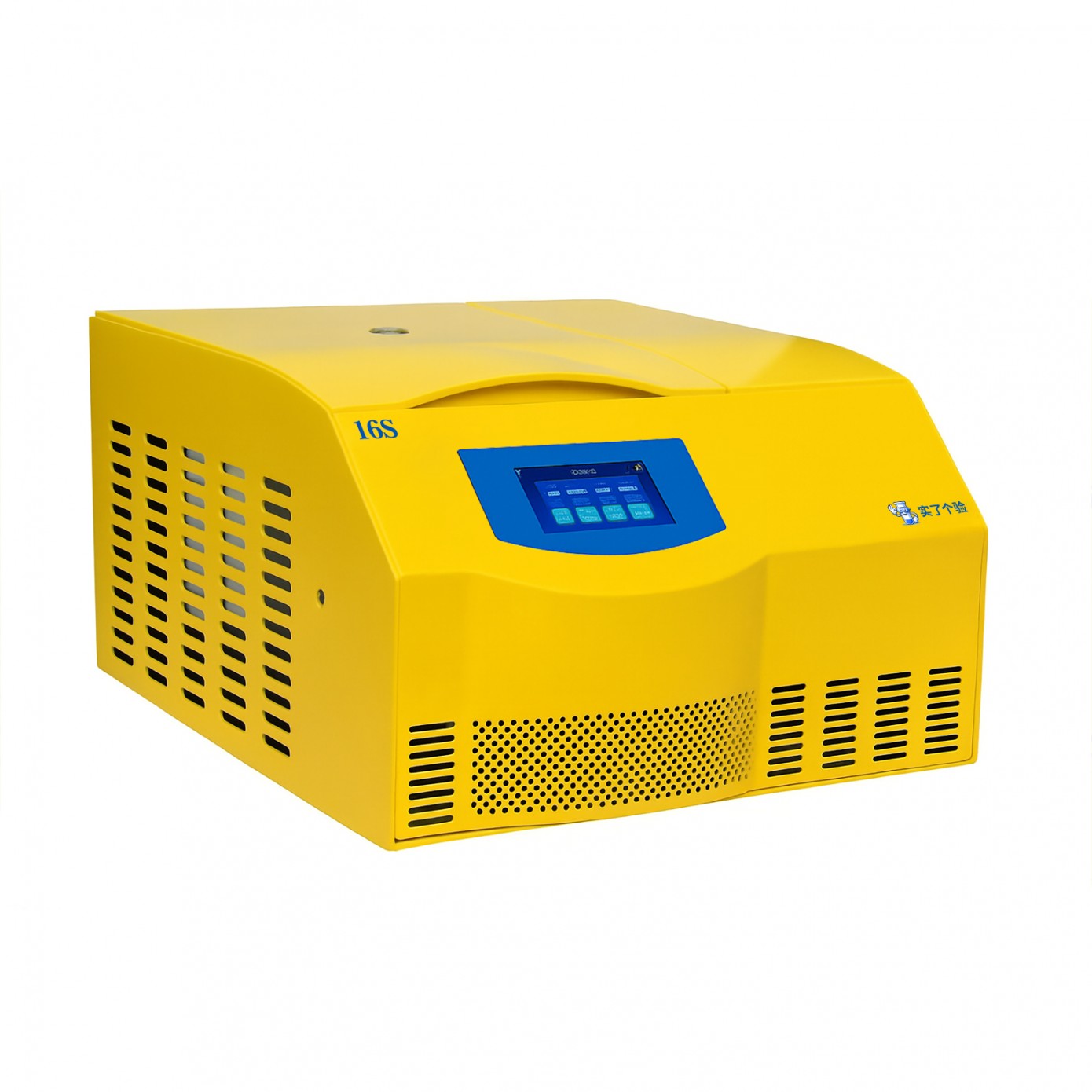

The 16S Desktop High-Speed Refrigerated Centrifuge is carefully designed and manufactured by Changsha Shi Ge Yan Biotechnology Co., Ltd. Relying on advanced technologies such as a high-torque brushless variable-frequency motor, imported fluorine-free compressor unit, and precision microcomputer control, it can meet the requirements of efficient centrifugation while ensuring temperature control accuracy and safety. By providing an after-sales service commitment of a three-year warranty with replacement instead of repair, Changsha Shi Ge Yan ensures the stability of the equipment and customer satisfaction.
This article will detail the technical features, application scenarios, parameters, and compatible rotors of the 16S Desktop High-Speed Refrigerated Centrifuge, and highlight the advantages of Changsha Shi Ge Yan Biotechnology Co., Ltd. in terms of product quality and after-sales support.
Maintenance-Free Design: The 16S Desktop High-Speed Refrigerated Centrifuge adopts a brushless high-torque variable-frequency motor, which avoids the problem of carbon brush wear and reduces the maintenance cost of the equipment.
Low Noise and Long Service Life: This motor features low noise and long service life, and does not produce carbon powder pollution, ensuring the cleanliness of the experimental environment. It is suitable for laboratories with high environmental requirements.
Fast Acceleration and Deceleration: The variable-frequency motor can achieve fast acceleration and deceleration, reducing the waiting time for samples and improving experimental efficiency.
Intelligent Operation: The 16S is equipped with a microprocessor control system and uses LCD display to show parameters such as speed, time, temperature, and acceleration/deceleration rate. All set parameters can be modified in real time, ensuring the accuracy and stability of data during the equipment operation.
Automatic Memory Function: The equipment supports automatic memory of the last set of operating programs, enabling quick calling of frequently used operating programs, avoiding tedious repeated settings, and saving operation time.
RCF Value Display: The equipment supports RPM/RCF conversion and can display operating parameters and actual parameters on the same screen, facilitating researchers to accurately record and analyze data.
Imported Fluorine-Free Compressor Unit: The 16S centrifuge adopts an imported fluorine-free compressor unit combined with R404A refrigerant. This system contains no CFCHCFC components that damage the ozone layer, complying with environmental protection requirements.
Fast Refrigeration: The equipment has strong refrigeration capacity. At the maximum speed, the temperature in the centrifugal chamber can be quickly reduced to 4℃ or below. It only takes 5 minutes to lower the temperature from room temperature (25℃) to 4℃, ensuring that temperature-sensitive samples reach the required temperature in a short time.
Precision Temperature Control: Through a dual-circulation refrigeration system, the temperature control accuracy reaches ±1℃, ensuring stable temperature control during long-term operation of the equipment and avoiding the impact of temperature fluctuations on experimental results.
Automatic Electric Induction Door Lock: The equipment is equipped with an automatic electric induction door lock. When the equipment is running, the door lock is automatically activated to ensure laboratory safety.
Emergency Unlocking Function: The equipment also has an emergency unlocking function. In case of equipment abnormality, users can quickly unlock the door to take out samples, ensuring the safety of experimental personnel.
Multiple Protections: The equipment is equipped with automatic protection functions against over-speed, over-temperature, and imbalance. When an abnormality occurs, the system will automatically shut down to prevent equipment damage and display an error code, facilitating users to troubleshoot.
High-Quality Steel Structure: The equipment body adopts a high-quality steel structure to ensure the stability and shock resistance of the equipment. It has a built-in fine steel explosion-proof protective inner sleeve and 304 stainless steel centrifugal chamber, which can effectively protect the equipment from damage and extend its service life.
Three-Level Shock Absorption System: The centrifuge is equipped with a three-level shock absorption system, which can reduce the vibration generated during centrifugation and ensure the optimal centrifugation effect.
LCD Touch Screen: The equipment is equipped with a 5-inch high-definition LCD touch screen, providing users with a user-friendly operation interface for quick setting and monitoring of the equipment's operating status.
Easy Rotor Installation and Removal: The 16S Desktop High-Speed Refrigerated Centrifuge uses a spring cone sleeve to connect the rotor and the main shaft. The locking method is simple, and the rotor can be installed and removed easily without directionality, reducing the labor intensity of operators.
Maximum Speed: 16000 r/min
Maximum Relative Centrifugal Force: 20600 × g
Maximum Capacity: 6 × 100 ml
Temperature Control Range: -20℃ ~ 40℃
Timing Range: 1 min ~ 9 h 59 min
Noise: ≤58 dBA
Overall Dimensions: 610 × 570 × 370 mm
Net Weight: 82 kg
Speed Control Accuracy: ±20 r/min
Power Supply: AC 220V, 50Hz, 5A
Temperature Control Accuracy: ±1℃
RPM/RCF Conversion: Supported
Certifications: CE, ISO
The 16S Desktop High-Speed Refrigerated Centrifuge offers a variety of rotors to meet the needs of different capacities and centrifugal forces. The following are common compatible rotors and their technical parameters:
The 16S Desktop High-Speed Refrigerated Centrifuge is widely used in experiments such as cell separation, protein extraction, and nucleic acid purification. It is an essential piece of equipment in molecular biology, cell biology, and immunology research.
In the medical field, this equipment is used for hematological experiments, plasma separation, cell precipitation, etc., and is particularly suitable for high-throughput, low-volume sample processing.
In pharmaceutical companies and biopharmaceutical enterprises, the 16S Desktop High-Speed Refrigerated Centrifuge is used in experiments such as drug screening, vaccine research and development, and virus separation to help purify and separate required biological products.
This equipment is also widely used in food safety testing and environmental monitoring, such as microbial testing in food and analysis of environmental pollutants.
Changsha Shi Ge Yan provides a three-year warranty for the 16S Desktop High-Speed Refrigerated Centrifuge and promises replacement instead of repair. It offers customers long-term and stable service guarantees to ensure that the equipment is always in the best working condition during use.
The company has a professional after-sales service team, providing 24-hour technical support and rapid response services. This ensures that equipment failures can be handled in a timely manner, avoiding work delays caused by equipment issues.
Changsha Shi Ge Yan provides free shipping service for users across the country and ensures that formal invoices are provided for each transaction, offering customers a transparent and standardized procurement process.
The 16S Desktop High-Speed Refrigerated Centrifuge is a high-speed refrigerated centrifuge that integrates high efficiency, stability, and precise control. It is widely used in fields such as biomedicine, clinical medicine, and pharmaceutical industry. Relying on advanced technologies including a brushless variable-frequency motor, imported fluorine-free compressor unit, and intelligent microcomputer control system, the 16S centrifuge has the advantages of fast refrigeration, precision temperature control, and efficient centrifugation, providing strong support for laboratory work.
The after-sales service commitment of a three-year warranty with replacement instead of repair provided by Changsha Shi Ge Yan Biotechnology Co., Ltd. further enhances the reliability of the product and users' confidence. Whether for scientific research or daily experiments, the 16S Desktop High-Speed Refrigerated Centrifuge will be your ideal choice.
